ADP3041 Series

TFT LCD Panel Power Module

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

TFT LCD Panel Power Module

Part	Voltage - Output (Max)	Voltage - Output (Min)	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Number of Outputs	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Applications	Package Length	Package Width	Mounting Type
Analog Devices Inc./Maxim Integrated ADP3041ARU-REEL	12 V	4.5 V	20-TSSOP	-40 °C	85 °C	1	2.5 V	5.5 V	Converter TFT LCD	0.173 in	4.4 mm	Surface Mount

Catalog

TFT LCD Panel Power Module

Description

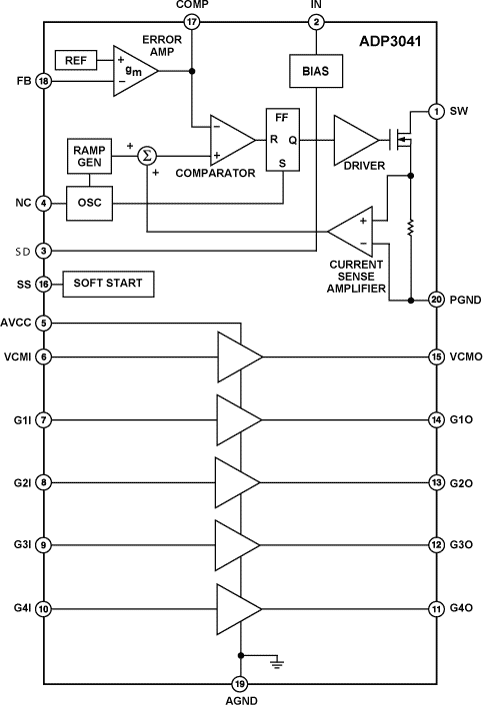

The ADP3041 is a fixed frequency, PWM step-up dc-to-dc switching regulator with five buffers capable of 12 V boosted output voltage in a TSSOP 20-lead package. It provides high efficiency, low noise operation, and excellent dynamic response and is easy to use. The high switching frequency allows for small, cost-saving external inductive and capacitive components. The ADP3041 operates in PWM current mode. The current limit and the power switch are integrated completely on-chip.APPLICATIONSTFT LCD Bias Supplies
