AHDBM06 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

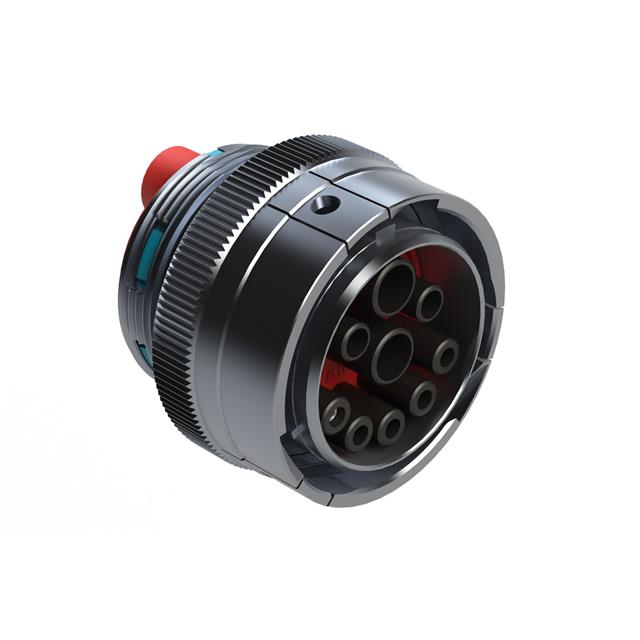

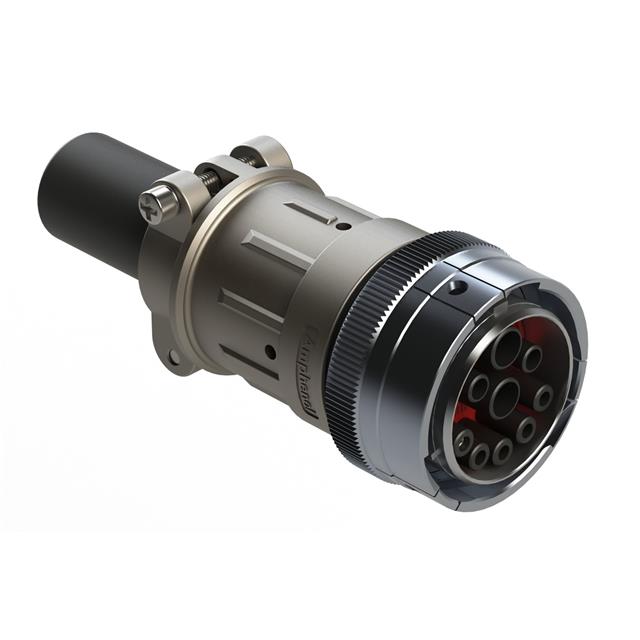

STANDARD CIRCULAR CONNECTOR SIZE 24, 9 POSITION ISOBUS PLUG, SOCKET, REDUCED SEAL, WIDE THREAD ADAPTER (WTA), BREAK-AWAY. NOTE: USE (SIZE 8) PN# AT62-203-08141-16 CONTACTS FOR 6AWG/16MM APPLICATIONS
| Part | Contact Shape | Note | Shielding | Ingress Protection Description | Ingress Protection IP Rating | Features | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Type | Contact Size | Mounting Type | Primary Material | Connector Type | Insert Material | Shell Material | Shell Finish | Orientation | Fastening Type | Housing Color | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Contact Type | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Circular | Contacts Not Included | Unshielded | Dust Tight Water Resistant Waterproof | IP68 IP69K | Coupling Nut | 91 | 24 | For Female Sockets | 8 12 16 | Free Hanging (In-Line) | Metal | Plug Housing | Thermoplastic | Zinc Alloy | Nickel | Keyed | Bayonet Lock | Silver | 9 | 125 °C | -55 °C | Crimp | ||
 McGill Microwave Systems | Circular | Contacts Not Included | Unshielded | Dust Tight Water Resistant Waterproof | IP68 IP69K | Backshell Cable Clamp Coupling Nut | 91 | 24 | For Female Sockets | 8 12 16 | Free Hanging (In-Line) | Metal | Plug Housing | Thermoplastic | Zinc Alloy | Nickel | Keyed | Bayonet Lock | Silver | 9 | 125 °C | -55 °C | Crimp | 2 pcs | Backshell Connector |
 McGill Microwave Systems | Circular | Contacts Not Included | Unshielded | Dust Tight Water Resistant Waterproof | IP68 IP69K | Coupling Nut | 91 | 24 | For Female Sockets | 8 12 16 | Free Hanging (In-Line) | Metal | Plug Housing | Thermoplastic | Zinc Alloy | Nickel | Keyed | Bayonet Lock | Silver | 9 | 125 °C | -55 °C | Crimp | ||
 McGill Microwave Systems | Circular | Contacts Not Included | Unshielded | Dust Tight Water Resistant Waterproof | IP67 IP69K | Backshell Cable Clamp Coupling Nut | 91 | 24 | For Female Sockets | 8 12 16 | Free Hanging (In-Line) | Metal | Plug Housing | Thermoplastic | Zinc Alloy | Nickel | Keyed | Bayonet Lock | Silver | 9 | 125 °C | -55 °C | Crimp | 2 pcs | Backshell Connector |
 McGill Microwave Systems | Circular | Contacts Not Included | Unshielded | Dust Tight Water Resistant Waterproof | IP67 IP69K | Backshell Cable Clamp Coupling Nut | 91 | 24 | For Female Sockets | 8 12 16 | Free Hanging (In-Line) | Metal | Plug Housing | Thermoplastic | Zinc Alloy | Nickel | Keyed | Bayonet Lock | Silver | 9 | 125 °C | -55 °C | Crimp | 2 pcs | Backshell Connector |
 McGill Microwave Systems | Circular | Contacts Not Included | Unshielded | Dust Tight Water Resistant Waterproof | IP68 IP69K | Coupling Nut | 91 | 24 | For Female Sockets | 8 12 16 | Free Hanging (In-Line) | Metal | Plug Housing | Thermoplastic | Zinc Alloy | Nickel | Keyed | Bayonet Lock | Silver | 9 | 125 °C | -55 °C | Crimp |
