ADG1407 Series

Catalog

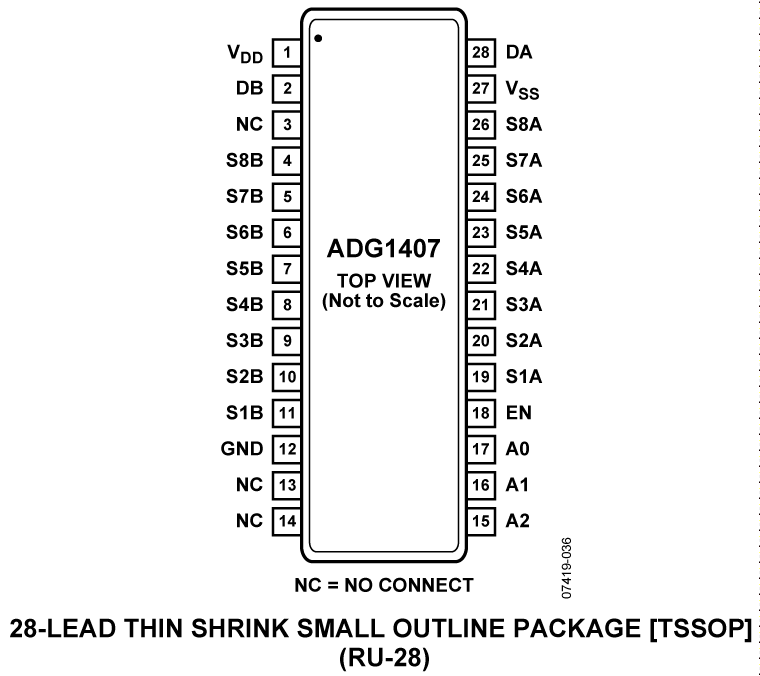

9.5 Ω RON, 16-CHANNEL, DIFFERENTIAL 8-CHANNEL, ±15 V/+12 V/±5 VICMOS MULTIPLEXERS

Part	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Switch Time Toff (Max)	Switch Time Ton (Max)	Multiplexer Inputs	Demultiplexer Outputs	Mounting Type	Current - Leakage (Max)	Charge Injection	Package Length	Package Name	Package Width	Operating Temperature (Max)	Operating Temperature (Min)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	On-State Resistance (Max)	-3db Bandwidth	Crosstalk	Number of Circuits	Channel-to-Channel Matching (ΔRon)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Maximum)	Package / Case
Analog Devices Inc./Maxim Integrated ADG1407BRUZ	16.5 V	5 V	120 ns	110 ns	8	1	Surface Mount	250 pA	10 pC	0.173 in	28-TSSOP	4.4 mm	125 °C	-40 °C	8 pF	45 pF	11.5 Ohms	110 MHz	-70 dB	2	550 mOhm	-4.5 V	4.5 V	16.5 V
Analog Devices Inc./Maxim Integrated ADG1407BCPZ-REEL7	16.5 V	5 V	120 ns	110 ns	8	1	Surface Mount	250 pA	10 pC	5 mm	32-LFCSP-WQ	5 mm	125 °C	-40 °C	8 pF	45 pF	11.5 Ohms	110 MHz	-70 dB	2	550 mOhm	-4.5 V	4.5 V	16.5 V	32-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG1407BRUZ-REEL7	16.5 V	5 V	120 ns	110 ns	8	1	Surface Mount	250 pA	10 pC	0.173 in	28-TSSOP	4.4 mm	125 °C	-40 °C	8 pF	45 pF	11.5 Ohms	110 MHz	-70 dB	2	550 mOhm	-4.5 V	4.5 V	16.5 V
