414338 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

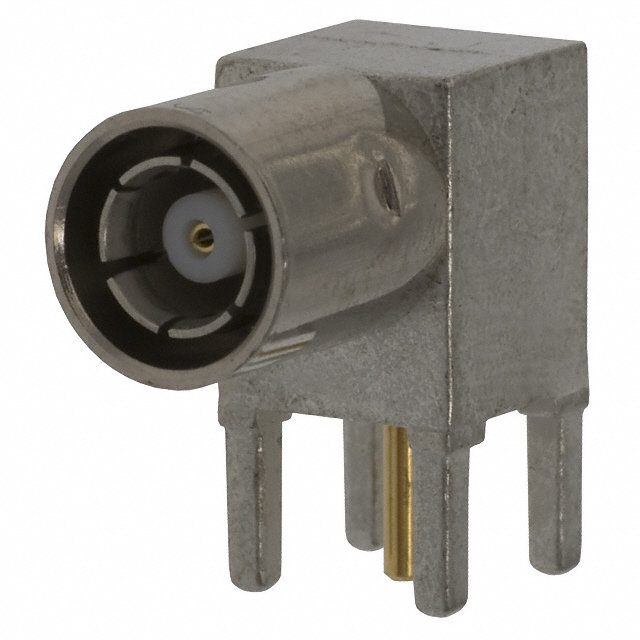

CONN SMB PLUG R/A 50 OHM PCB
| Part | Body Material | Mating Cycles | Center Contact Plating | Insertion Loss | Operating Temperature (Min) | Operating Temperature (Max) | Body Finish | Dielectric Material | Voltage Rating | Impedance | Contact Termination | Number of Ports | Connector Style | Connector Type | Mounting Type | Housing Color | Fastening Type | Center Contact Material | Frequency - Max | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Zinc Alloy | 500 cycles | Gold | 0.6 dB | -65 °C | 165 °C | Nickel | Polytetrafluoroethylene (PTFE) | 335 V | 50 Ohm | Solder | 1 | SMB | Female Socket Plug | Right Angle Through Hole | Silver | Snap-On | Brass | 4 GHz | Solder |
