M12A-05PFFS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

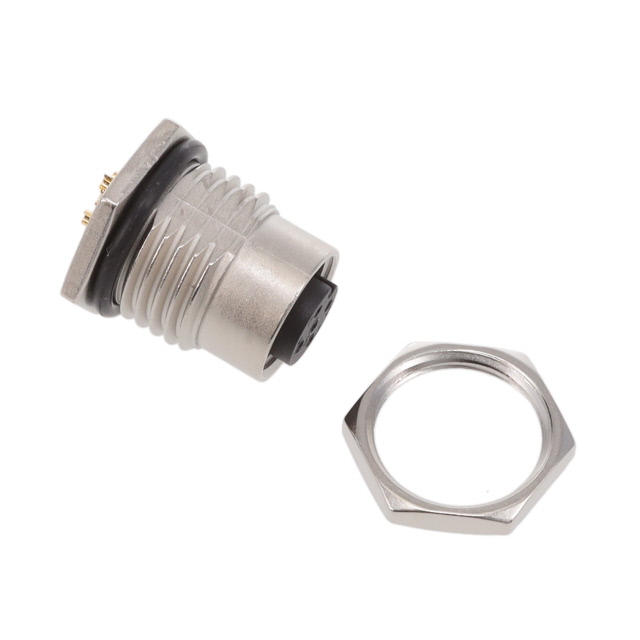

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, M16*1.5, SCREW THREAD,
| Part | Termination | Primary Material | Shell Material | Shielding | Insert Material | Ingress Protection Description | Ingress Protection IP Rating | Shell Size - Insert | Orientation | Current Rating | Mounting Feature | Shell Finish | Mounting Type | Contact Finish - Mating | Number of Positions | Color | Voltage Rating | Voltage Rating (Type) | Fastening Type | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Solder Cup | Metal | Zinc Alloy | Shielded | Glass Filled Nylon PA Polyamide | Dust Tight Water Resistant Waterproof | IP68 IP69K | M12-5 | A | 4 A | Bulkhead Front Side Nut | Nickel | Panel Mount Through Hole | Gold | 5 | Silver | 60 V | DC | Threaded | -40 °C | 105 °C | Copper Alloy | Female Sockets Receptacle |
 McGill Microwave Systems | Solder Cup | Metal | Zinc Alloy | Shielded Unshielded | Glass Filled Nylon PA Polyamide | Dust Tight Water Resistant Waterproof | IP68 IP69K | M12-5 | A | 4 A | Bulkhead Front Side Nut | Nickel | Panel Mount Through Hole | Gold | 5 | Silver | 60 V | DC | Threaded | -40 °C | 105 °C | Copper Alloy | Female Sockets Receptacle |
 McGill Microwave Systems | Solder Cup | Metal | Zinc Alloy | Shielded Unshielded | Glass Filled Nylon PA Polyamide | Dust Tight Water Resistant Waterproof | IP68 IP69K | M12-5 | A | 4 A | Bulkhead Rear Side Nut | Nickel | Panel Mount Through Hole | Gold | 5 | Silver | 60 V | DC | Threaded | -40 °C | 105 °C | Copper Alloy | Female Sockets Receptacle |
