ADA4522 Series

Quad 55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifier

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Quad 55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifier

Part	Output Type	Voltage - Supply Span (Max)	Current - Input Bias	Number of Circuits	Gain Bandwidth Product	Operating Temperature (Max)	Operating Temperature (Min)	Current - Supply	Amplifier Type	Package Name	Slew Rate	Current - Output / Channel	Voltage - Supply Span (Min)	Package Width	Package Length	Voltage - Input Offset	Mounting Type	-3db Bandwidth	Current - Supply (Main IC)	Board Type	Supplied Contents	Supply Configuration	Voltage - Supply (Dual) Minimum (Magnitude)	Voltage - Supply (Single) Minimum	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Single) Maximum	Utilized IC / Part	Contents	Channels per IC (Dual)	Channels per IC (Type)	Channels per IC (Count)
Analog Devices Inc./Maxim Integrated ADA4522-1ARMZ-RL	Rail-to-Rail	55 V	50 pA	1	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	8-MSOP 8-TSSOP 8-MSOP	1.7 V/µs	32 mA	4.5 V	3 mm	0.118 in	1.5 µV	Surface Mount
Analog Devices Inc./Maxim Integrated ADA4522-1ARMZ	Rail-to-Rail	55 V	50 pA	1	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	8-MSOP 8-TSSOP 8-MSOP	1.7 V/µs	32 mA	4.5 V	3 mm	0.118 in	1.5 µV	Surface Mount
Analog Devices Inc./Maxim Integrated ADA4522-4ARUZ-R7	Rail-to-Rail	55 V	50 pA	4	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	14-TSSOP	1.7 V/µs	32 mA	4.5 V	4.4 mm	0.173 in	1.5 µV	Surface Mount	6.5 MHz
Analog Devices Inc./Maxim Integrated ADA4522-4ARZ-RL	Rail-to-Rail	55 V	50 pA	4	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	14-SOIC	1.7 V/µs	32 mA	4.5 V	3.9 mm	0.154 in	1.5 µV	Surface Mount	6.5 MHz
Analog Devices Inc./Maxim Integrated ADA4522-2ARMZ-R7	Rail-to-Rail	55 V	50 pA	2	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	8-MSOP 8-TSSOP 8-MSOP	1.7 V/µs	32 mA	4.5 V	3 mm	0.118 in	1.5 µV	Surface Mount	6.5 MHz

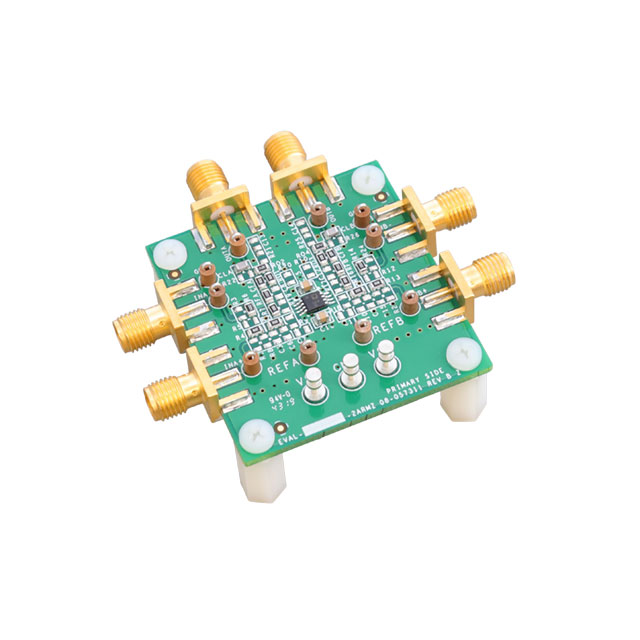

Analog Devices Inc./Maxim Integrated EVAL-ADA4522-2ARMZ	Rail-to-Rail Single-Ended				2.7 MHz				Zero-Drift		1.7 V/µs	32 mA						6.5 MHz	0.00083 µA	Fully Populated	Board(s)	Dual Single	2.5 V	5 V	27.5 V	55 V	ADA4522-2	Board	2	Dual	2
Analog Devices Inc./Maxim Integrated ADA4522-1ARZ-RL	Rail-to-Rail	55 V	50 pA	1	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	8-SOIC	1.7 V/µs	32 mA	4.5 V	3.9 mm	0.154 in	1.5 µV	Surface Mount
Analog Devices Inc./Maxim Integrated ADA4522-2ARMZ-RL	Rail-to-Rail	55 V	50 pA	2	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	8-MSOP 8-TSSOP 8-MSOP	1.7 V/µs	32 mA	4.5 V	3 mm	0.118 in	1.5 µV	Surface Mount	6.5 MHz
Analog Devices Inc./Maxim Integrated ADA4522-2ARZ-RL	Rail-to-Rail	55 V	50 pA	2	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	8-SOIC	1.7 V/µs	32 mA	4.5 V	3.9 mm	0.154 in	1.5 µV	Surface Mount	6.5 MHz
Analog Devices Inc./Maxim Integrated ADA4522-2ARZ	Rail-to-Rail	55 V	50 pA	2	2.7 MHz	125 °C	-40 °C	830 µA	Zero-Drift	8-SOIC	1.7 V/µs	32 mA	4.5 V	3.9 mm	0.154 in	1.5 µV	Surface Mount	6.5 MHz

Catalog

Quad 55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifier

Description

TheADA4522-1/ADA4522-2/ ADA4522-4 are single/dual/quad channel, zero drift op amps with low noise and power, ground sensing inputs, and rail-to-rail output, optimized for total accuracy over time, temperature, and voltage conditions. The wide operating voltage and temperature ranges, as well as the high open-loop gain and very low dc and ac errors make the devices well suited for amplifying very small input signals and for accurately reproducing larger signals in a wide variety of applications.The ADA4522-1 / ADA4522-2 / ADA4522-4 performance is specified at 5.0 V, 30 V, and 55 V power supply voltages. These devices operate over the range of 4.5 V to 55 V, and are excellent for applications using single-ended supplies of 5 V, 10 V, 12 V, and 30 V, or for applications using higher single supplies and dual supplies of ±2.5 V, ±5 V, and ±15 V. The ADA4522-1 / ADA4522-2 / ADA4522-4 use on-chip filtering to achieve high immunity to electromagnetic interference (EMI).The ADA4522-1 / ADA4522-2 / ADA4522-4 are fully specified over the extended industrial temperature range of −40°C to +125°C and are available in 8-lead MSOP, 8-lead SOIC, 14-lead SOIC, and 14-lead TSSOP packages.APPLICATIONSInductance, capacitance, and resistance (LCR) meter/megohmmeter front-end amplifiersLoad cell and bridge transducersMagnetic force balance scalesHigh precision shunt current sensingThermocouple/resistance temperature detector (RTD) sensorsProgrammable logic controller (PLC) input and output amplifiers
