Q-0300V0 Series

Catalog

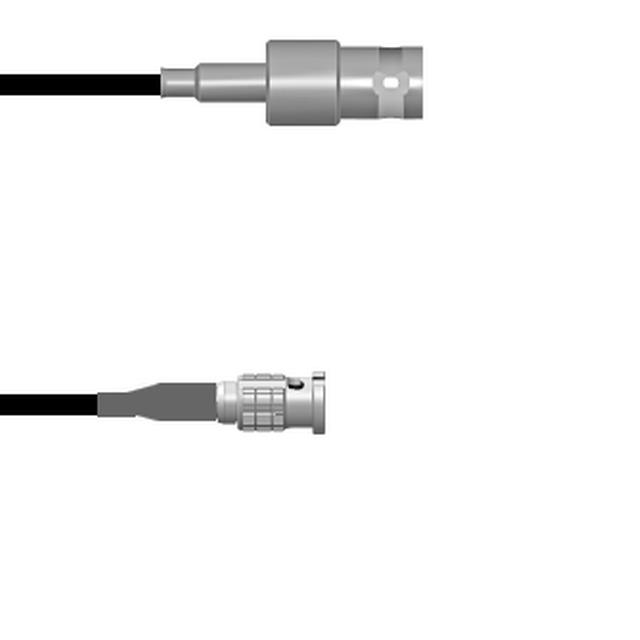

CBL ASSY BNC-HDBNC JACK-PLG 8.2'

Part	Overall Impedance	Frequency - Max	2nd Connector Mounting Type	Color	2nd Contact Gender	Cable Type	1st Connector	Features	Length (ft)	Length	2nd Connector	Style	1st Contact Gender	1st Connector Mounting Type
McGill Microwave Systems Q-0300V00032.5M	50 Ohms	4 GHz	Free Hanging (In-Line)	Black	Male	174 RG	BNC Jack	Shielded	8.2 ft	98.4 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V00050.5M	50 Ohms	4 GHz	Free Hanging (In-Line)	Copper	Male	316 RG	BNC Jack	Shielded		19.69 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V0003001M	50 Ohms	4 GHz	Free Hanging (In-Line)	Black	Male	174 RG	BNC Jack	Shielded		39.4 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V0005048i	50 Ohms	4 GHz	Free Hanging (In-Line)	Copper	Male	316 RG	BNC Jack	Shielded		48 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V0003003M	50 Ohms	4 GHz	Free Hanging (In-Line)	Black	Male	174 RG	BNC Jack	Shielded		118.1 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V00051.5M	50 Ohms	4 GHz	Free Hanging (In-Line)	Copper	Male	316 RG	BNC Jack	Shielded	4.9 ft	59.1 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V0005.75M	50 Ohms	4 GHz	Free Hanging (In-Line)	Copper	Male	316 RG	BNC Jack	Shielded		29.53 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V0003060i	50 Ohms	4 GHz	Free Hanging (In-Line)	Black	Male	174 RG	BNC Jack	Shielded	5 ft	1524 mm	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V0003036i	50 Ohms	4 GHz	Free Hanging (In-Line)	Black	Male	174 RG	BNC Jack	Shielded		36 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
McGill Microwave Systems Q-0300V0005072i	50 Ohms	4 GHz	Free Hanging (In-Line)	Copper	Male	316 RG	BNC Jack	Shielded		72 in	HD-BNC Plug	BNC HD-BNC	Female	Free Hanging (In-Line)
