ADL5371 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

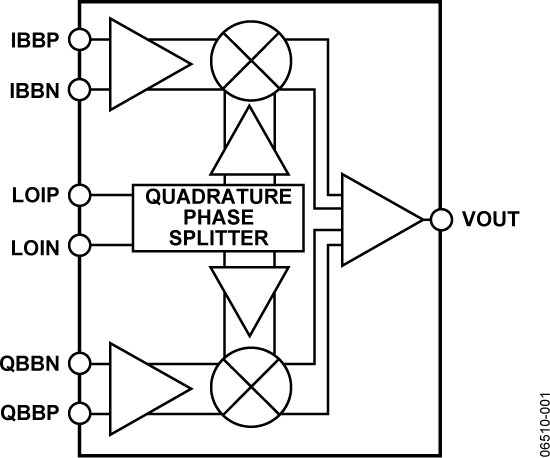

500 MHZTO 1500 MHZQUADRATURE MODULATOR
| Part | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | RF Frequency (Max) | RF Frequency (Min) | LO Frequency (Max) | LO Frequency (Min) | P1dB | Package / Case | Mounting Type | Current - Supply | Output Power | Test Frequency | Noise Floor | Function | Package Width | Package Name | Package Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 5.25 V | 4.75 V | 1.5 GHz | 500 MHz | 500 MHz | 1.5 GHz | 14.4 dBm | 24-VFQFN Exposed Pad CSP | Surface Mount | 200 mA | 7.6 dBm | 900 MHz | -158.6 dBm/Hz | Modulator | 4 mm | 24-LFCSP-VQ | 4 mm |
