VITA Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF CABLE ASSEMBLIES SMPM F TO SMPM F CBL ASSY FOR .085CBL
| Part | Length | Overall Impedance | 2nd Contact Gender | Operating Temperature (Min) | Operating Temperature (Max) | Features | Frequency - Max | 1st Connector Mounting Type | 1st Connector | 2nd Connector | Style | 2nd Connector Mounting Type | 1st Contact Gender | Color | Cable Type Size | Cable Type | Accessory Type | Material | For Use With/Related Products | Specifications | Number of {label}s | Number of Positions | Position | Tool Type | Cable Impedance | Type | Pin or Socket | Wire Gauge | Wire Gauge (Diameter) | Contact Finish | Contact Termination | Contact Finish Thickness | Contact Material | Mounting Type | Cable Group Size | Cable Group | Board Thickness | Impedance | Cable Diameter | Cable Outer Diameter | 2nd Connector Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 12 in | 50 Ohms | Female | -65 °C | 165 °C | Shielded | 40 Gbps | Free Hanging (In-Line) | SMPM Jack | SMPM Jack | SMPM | Free Hanging (In-Line) | Female | Blue | 405 | TFlex | |||||||||||||||||||||||||
 McGill Microwave Systems | Silver | Switch Module | Stainless Steel | MT Connectors | 3 Position | 3 | 3 | 3 | |||||||||||||||||||||||||||||||||
 McGill Microwave Systems | Coaxial RF - SMPM | Extraction Tool | |||||||||||||||||||||||||||||||||||||||

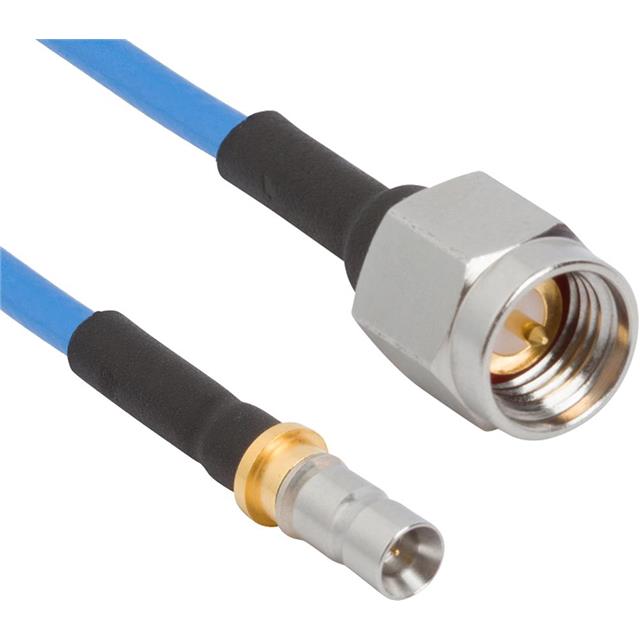

 McGill Microwave Systems | 12 in | 50 Ohms | Male | -65 °C | 165 °C | Shielded | 18 GHz | Free Hanging (In-Line) | SMA Plug | SMPM Plug | SMA SMPM | Free Hanging (In-Line) | Male | Blue | 405 | TFlex | 50 Ohms | ||||||||||||||||||||||||
 McGill Microwave Systems | Coaxial | Socket | Coaxial Cable | 0.047 in | Gold | Solder | |||||||||||||||||||||||||||||||||||
 McGill Microwave Systems | SMPS | Socket | Gold | 50 µin | Beryllium Copper | Free Hanging (In-Line) | 0.047 " | Flexible | 0.043 in | 50 Ohm | |||||||||||||||||||||||||||||||
 McGill Microwave Systems | 12 in | 50 Ohms | Female | -65 °C | 165 °C | 40 Gbps | Free Hanging (In-Line) | NANO Jack | SMPM Jack | NANO SMPM | Free Hanging (In-Line) | Female | Blue | 0.047 0.047 " | Flexible Cable | 0.047 " | 0.047 " | ||||||||||||||||||||||||
 McGill Microwave Systems | 12 in | 50 Ohms | Male | -65 °C | 165 °C | Shielded | 40 Gbps | Free Hanging (In-Line) | SMP Jack | Plug | SMP to 2.92mm | Free Hanging (In-Line) | Female | Blue | 0.047 0.047 " | Flexible Cable | 0.047 " | 0.047 " | 2.92 mm |
