Q-0904W0 Series

Catalog

CBL ASSY BNC-TNC JACK-PLUG 3.3'

Part	2nd Connector Mounting Type	Style	1st Connector	Overall Impedance	1st Contact Gender	2nd Connector	Cable Type	2nd Contact Gender	Features	Frequency - Max	Color	1st Connector Mounting Type	Length	Length (ft)

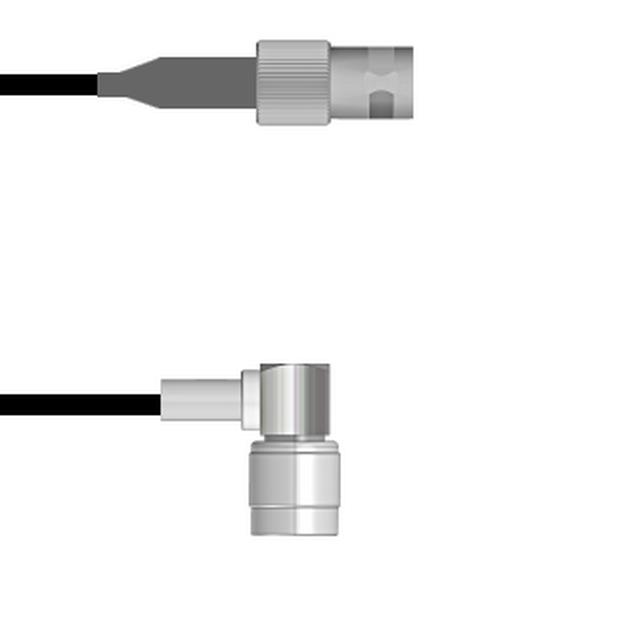

McGill Microwave Systems Q-0904W0008001M	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	39.4 in
McGill Microwave Systems Q-0904W00081.5M	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	59.1 in	4.9 ft
McGill Microwave Systems Q-0904W00082.5M	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	98.4 in	8.2 ft
McGill Microwave Systems Q-0904W0008.75M	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	29.53 in
McGill Microwave Systems Q-0904W0008012i	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	12 in
McGill Microwave Systems Q-0904W0008036i	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	36 in
McGill Microwave Systems Q-0904W0008084i	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	84 in	7 ft
McGill Microwave Systems Q-0904W00080.5M	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	19.69 in
McGill Microwave Systems Q-0904W0008024i	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	24 in
McGill Microwave Systems Q-0904W0008048i	Free Hanging (In-Line)	BNC TNC	BNC Jack	50 Ohms	Female	Right Angle TNC Plug	58 RG	Male	Shielded	4 GHz	Black	Free Hanging (In-Line)	48 in
