5050864 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

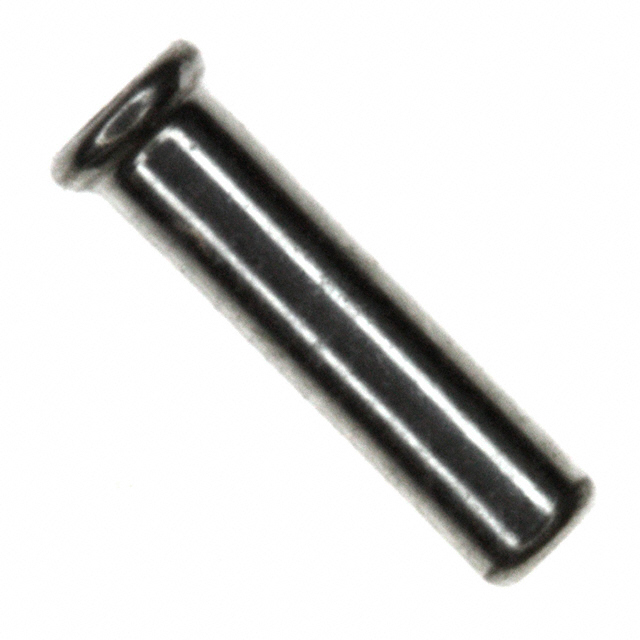

SKT,MIN-SPR W/OPEN BOT SN SER3 ROHS COMPLIANT: YES
| Part | Features | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Hole Diameter (Max) | Mounting Hole Diameter (Min) | Socket Depth | Accepts Pin Diameter (Min) | Accepts Pin Diameter (Max) | Flange Diameter | Contact Finish Thickness | Tail Type | Length - Overall | Termination | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Open Bottom | -65 °C | 126 °C | 0.063 in | 0.062 in | 0.244 in | 0.026 in | 0.033 in | 0.08 in | 100 µin | No Tail | 0.257 in | Solder | Beryllium Copper | Tin |
