Q-070210 Series

Catalog

CBL ASSY BNC-NTYPE JK-JK 19.69"

Part	Frequency - Max	1st Connector	Overall Impedance	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Type	Color	2nd Contact Gender	Style	Cable Type Size	Cable Type	Features	2nd Connector Mounting Feature	1st Contact Gender	1st Connector Mounting Feature	Length	Length (ft)

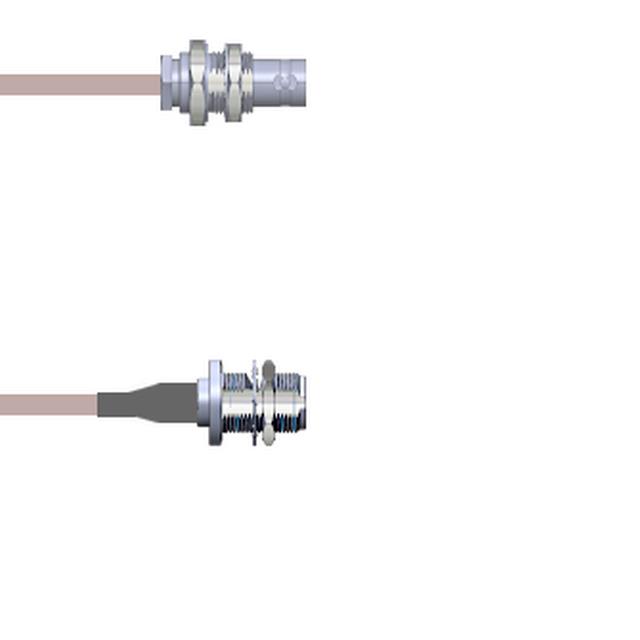

McGill Microwave Systems Q-07021000R0.5M	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	19.69 in
McGill Microwave Systems Q-07021000R.25M	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	9.843 in
McGill Microwave Systems Q-07021000R024i	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	24 in
McGill Microwave Systems Q-07021000R.75M	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	29.53 in
McGill Microwave Systems Q-07021000R012i	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	12 in
McGill Microwave Systems Q-07021000R2.5M	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	98.4 in	8.2 ft
McGill Microwave Systems Q-07021000R060i	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	1524 mm	5 ft
McGill Microwave Systems Q-07021000R006i	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	0.5 ft
McGill Microwave Systems Q-07021000R1.5M	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	59.1 in	4.9 ft
McGill Microwave Systems Q-07021000R009i	2 GHz	BNC Jack	50 Ohms	Panel Mount	N-Type Jack	Panel Mount	Copper	Female	BNC N-Type	316	DB RG	Shielded	Bulkhead - Front Side Nut	Female	Bulkhead Front Side Nut	228.6 mm
