FASTIN-FASTON 312 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

312 FLAG F-F REC POST TIN ROHS COMPLIANT: YES

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Gender	Tab Width	Mounting Type	Termination	Contact Material	Tab Length	Contact Finish	Tab Thickness	Insulation	Terminal Angle	Terminal Type	Number of Positions	For Use With/Related Products	Stacking Direction	Terminal Size	Style	Color	Related Product Length	Material	Note
TE Connectivity AMP Connectors 170191-3	0.118 in	0.169 in	18 AWG	14 AWG	Female	0.312 in	Free Hanging (In-Line) Right Angle	Crimp	Brass	0.339 in	Tin	0.032 in	Non-Insulated	90 °	Angled Flag
TE Connectivity AMP Connectors 626213-2					Female Receptacle		Free Hanging (In-Line)								Disconnect Quick Connect	3	0.312" (7.92mm) Quick Connects Flag	Multiple	0.312 in	Housing	Black
TE Connectivity AMP Connectors 480100-1					Female Receptacle		Free Hanging (In-Line)								Disconnect Quick Connect	3	0.312" (7.92mm) Quick Connects	Multiple	0.312 in	Housing	Black
TE Connectivity AMP Connectors 150653-1					Female Receptacle		Free Hanging (In-Line)								Disconnect Quick Connect	3	0.250" (6.35mm) Quick Connects Quick Connects	Multiple	0.25 in	Housing	Black	0.25 in
TE Connectivity AMP Connectors 180453-1	0.098 in	0.15 in	17 AWG	13 AWG	Female	0.312 in	Free Hanging (In-Line) Right Angle	Crimp	Brass	0.339 in		0.032 in	Non-Insulated	90 °	Angled Flag

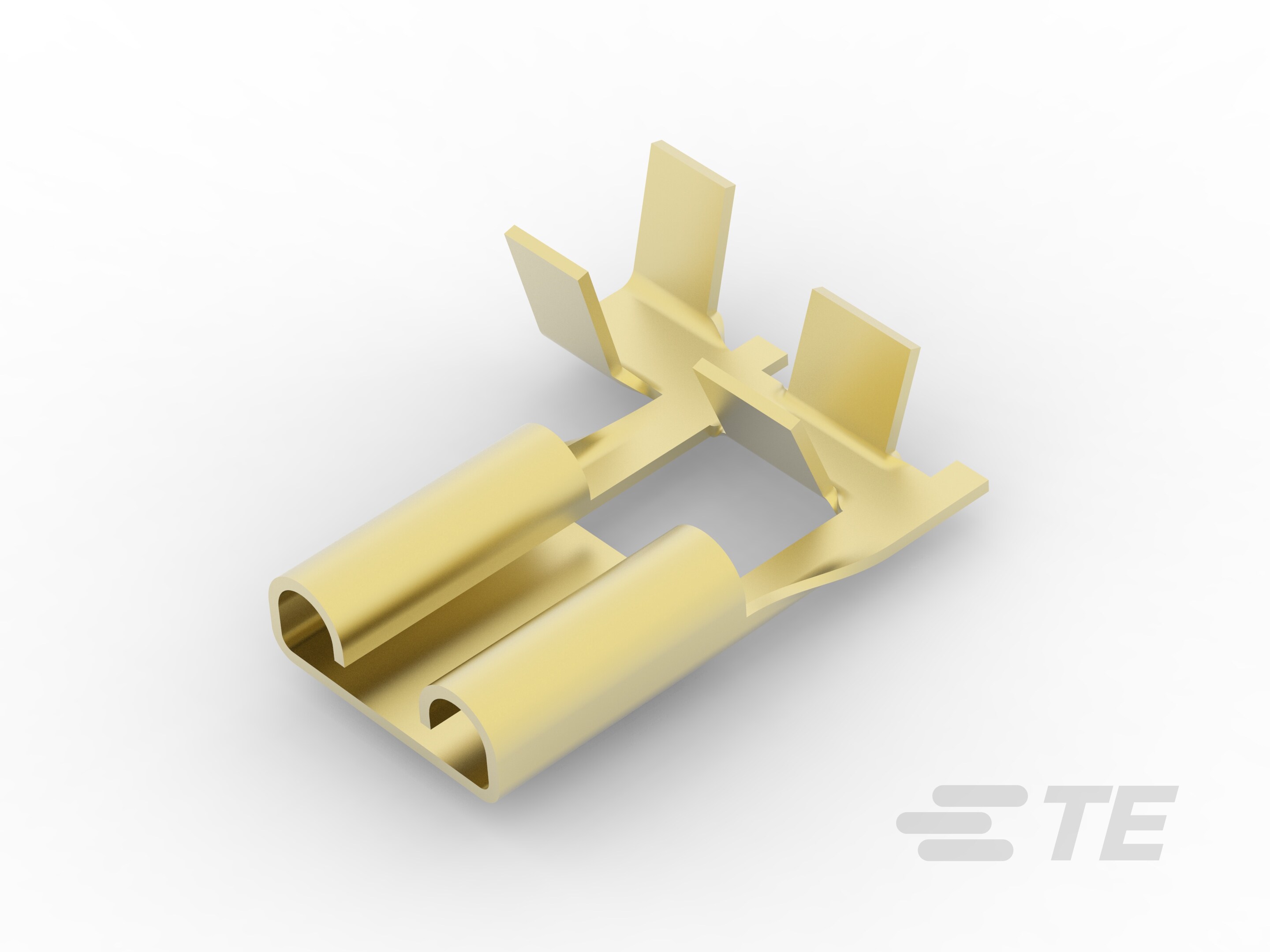

TE Connectivity AMP Connectors 170191-1	0.118 in	0.169 in	18 AWG	14 AWG	Female	0.312 in	Free Hanging (In-Line) Right Angle	Crimp	Brass	0.339 in		0.032 in	Non-Insulated	90 °	Angled Flag
TE Connectivity AMP Connectors 925176-5					Female Receptacle		Free Hanging (In-Line)								Disconnect Quick Connect	3	0.312" (7.92mm) Quick Connects	Multiple	0.312 in	Housing	Black
TE Connectivity AMP Connectors 180453-2			17 AWG	13 AWG	Female	0.312 in	Free Hanging (In-Line) Right Angle	Crimp	Brass	0.339 in	Tin	0.032 in	Non-Insulated	90 °	Angled Flag

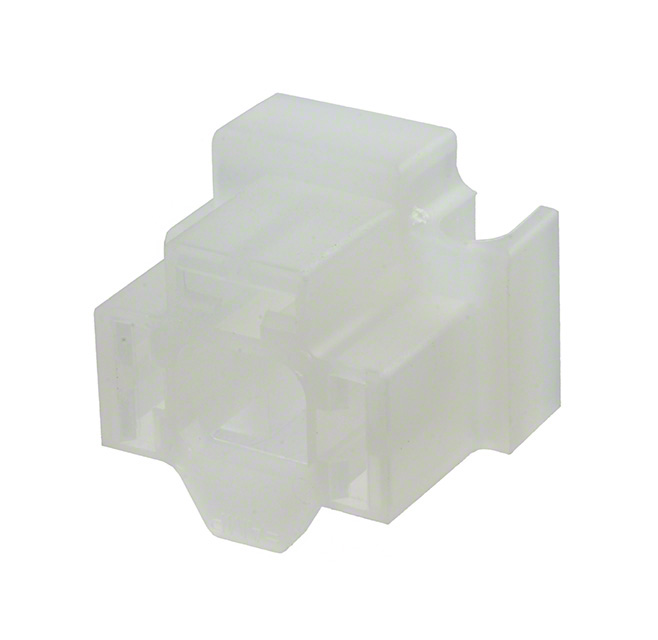

TE Connectivity AMP Connectors 925176					Female Receptacle		Free Hanging (In-Line)								Disconnect Quick Connect	3	0.312" (7.92mm) Quick Connects	Multiple	0.312 in	Housing	Natural		6 Nylon 6 Polyamide (PA66)	Contacts Not Included
TE Connectivity AMP Connectors 880681-4	0.079 in	0.13 in	20.5 AWG	17 AWG	Female	0.312 in	Free Hanging (In-Line) Right Angle	Crimp	Phosphor Bronze	0.339 in	Tin	0.032 in	Non-Insulated	90 °	Angled Flag
