RT0W61832 Series

Catalog

CONN PLUG MALE 32POS GOLD CRIMP

Part	Contact Finish Thickness - Mating	Voltage Rating	Voltage Rating (Type)	Contact Finish - Mating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Current Rating	Number of Positions	Termination	Fastening Type	Connector Type	Orientation	Primary Material	Color	Shell Finish	Contact Type	Features	Housing Color	Contact Shape	Note	Shielding	Contact Size	Material Flammability Rating	Type	Insert Material

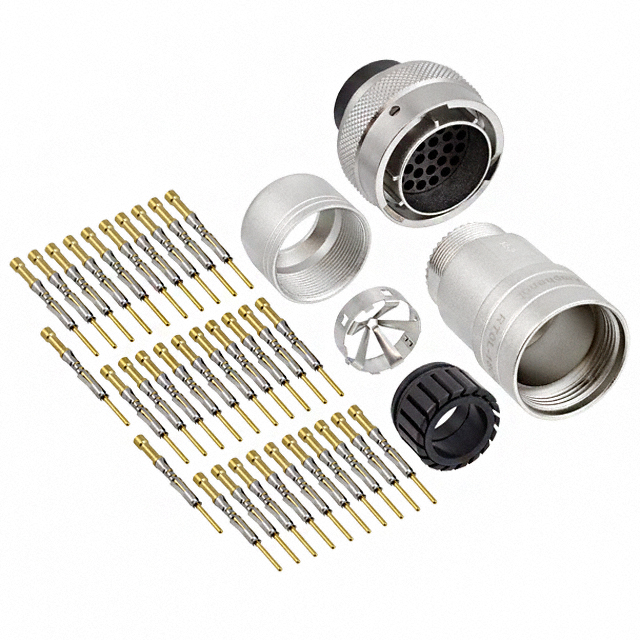

McGill Microwave Systems RT0W61832PNH-K	Flash	150 VDC	DC	Gold	Free Hanging (In-Line)	-40 °C	105 °C	Zinc Die Cast	Dust Tight Waterproof	IP67	32	18	7.5 A	32	Crimp	Bayonet Lock	Male Pins Plug	N (Normal)	Metal	Silver	Nickel

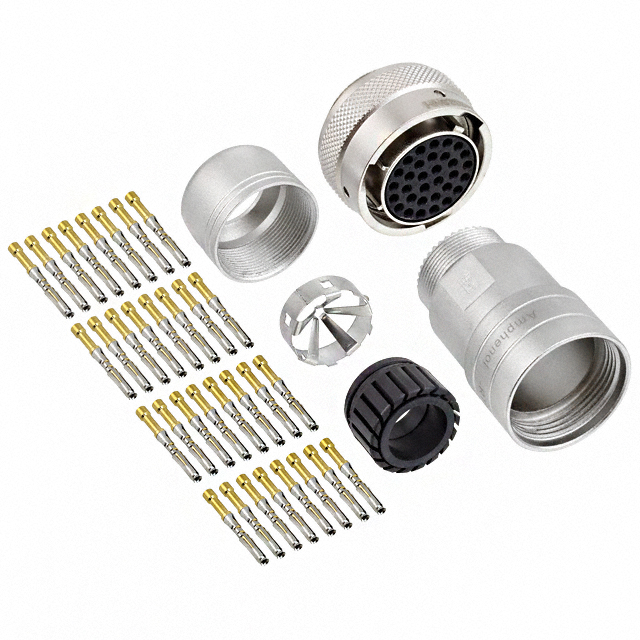

McGill Microwave Systems RT0W61832SNH-K	Flash	150 VDC	DC	Gold	Free Hanging (In-Line)	-40 °C	105 °C	Zinc Die Cast	Dust Tight Waterproof	IP67	32	18	7.5 A	32	Crimp	Bayonet Lock	Female Sockets Plug	N (Normal)	Metal	Silver	Nickel
McGill Microwave Systems RT0W61832PNHEC03
McGill Microwave Systems RT0W61832PNHEC					Free Hanging (In-Line)	-40 °C	105 °C	Zinc Alloy	Dust Tight Waterproof	IP67	32	18		32		Bayonet Lock	Plug Housing	N (Normal)			Nickel	Crimp	Backshell Coupling Nut	Silver	Circular	Contacts Not Included	Shielded	20	UL94 V-0	For Male Pins	Thermoplastic
McGill Microwave Systems RT0W61832SNHEC					Free Hanging (In-Line)	-40 °C	105 °C	Zinc Alloy	Dust Tight Waterproof	IP67	32	18		32		Bayonet Lock	Plug Housing	N (Normal)			Nickel	Crimp	Backshell Coupling Nut	Silver	Circular	Contacts Not Included	Shielded	20	UL94 V-0	For Female Sockets	Thermoplastic
