Q-0D02V0 Series

Catalog

CBL ASSY BNC-SMA PLG-JACK 9.843"

Part	Features	2nd Connector	Cable Type	Color	2nd Connector Mounting Type	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Type	Overall Impedance	1st Connector	Frequency - Max	Style	Length	Length (ft)

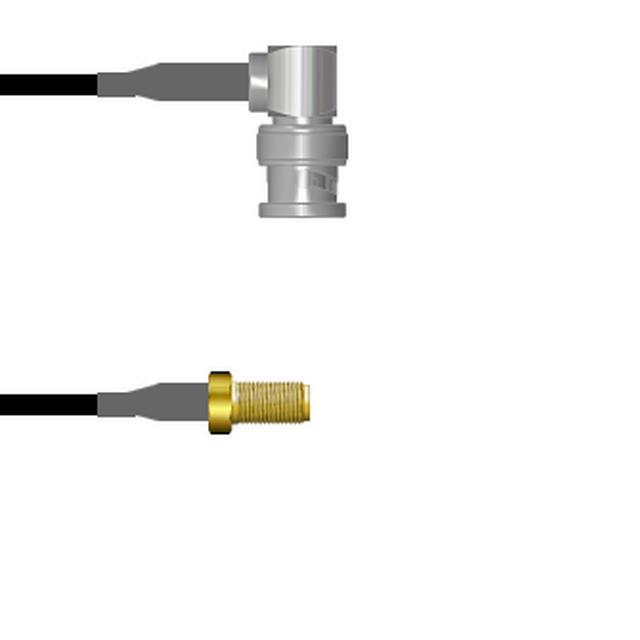

McGill Microwave Systems Q-0D02V0003.25M	Shielded	SMA Jack	174 RG	Black	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	9.843 in

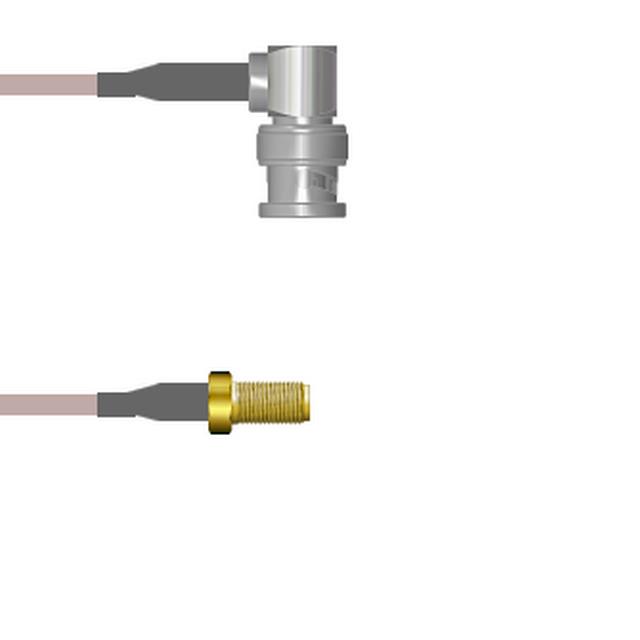

McGill Microwave Systems Q-0D02V0005084i	Shielded	SMA Jack	316 RG	Copper	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	84 in	7 ft
McGill Microwave Systems Q-0D02V0003036i	Shielded	SMA Jack	174 RG	Black	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	36 in
McGill Microwave Systems Q-0D02V00030.5M	Shielded	SMA Jack	174 RG	Black	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	19.69 in
McGill Microwave Systems Q-0D02V0003003i	Shielded	SMA Jack	174 RG	Black	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	3 "
McGill Microwave Systems Q-0D02V0003009i	Shielded	SMA Jack	174 RG	Black	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	228.6 mm
McGill Microwave Systems Q-0D02V0003108i	Shielded	SMA Jack	174 RG	Black	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	9 ft
McGill Microwave Systems Q-0D02V0003024i	Shielded	SMA Jack	174 RG	Black	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	24 in
McGill Microwave Systems Q-0D02V0005018i	Shielded	SMA Jack	316 RG	Copper	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	18 in
McGill Microwave Systems Q-0D02V0003012i	Shielded	SMA Jack	174 RG	Black	Free Hanging (In-Line)	Female	Male	Free Hanging (In-Line)	50 Ohms	BNC Plug Right Angle	4 GHz	BNC SMA	12 in
