SF1102 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
SMA FEMALE TO PTNC FEMALE FLANGE MOUNT ADAPTER, 4 HOLE /INDIVIDUAL - BAG (PACK FILL QTY: 1)
| Part | Dielectric Material | Body Material | Center Contact Material | Mating Cycles | Fastening Type | Style | Conversion Type | Convert To (Adapter End) Gender | Convert To (Adapter End) Type | Center Contact Plating | Adapter Series | Center Gender | Mounting Feature | Adapter Type | Mounting Type | Convert From (Adapter End) | Impedance | Frequency - Max | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

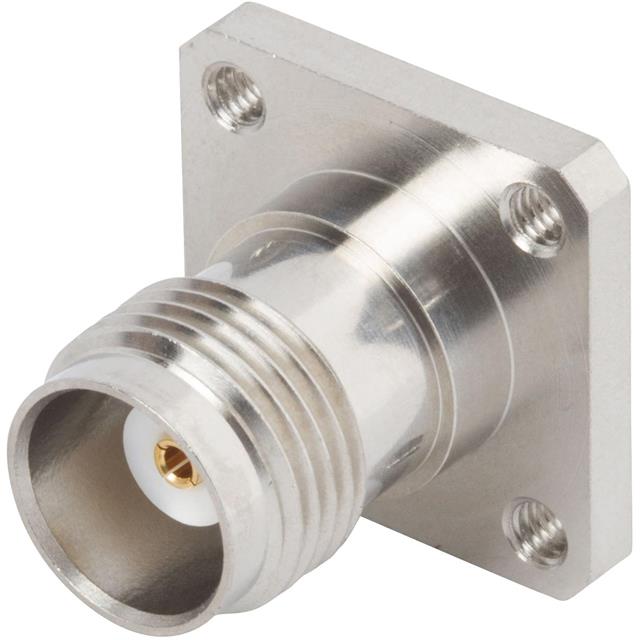

 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | 500 cycles | Threaded | Straight | Between Series | Female Socket | PTNC Jack | Gold | SMA to PTNC | Female | Flange | Jack to Jack | Panel Mount | Female Socket SMA Jack | 50 Ohm | 15 GHz | ||

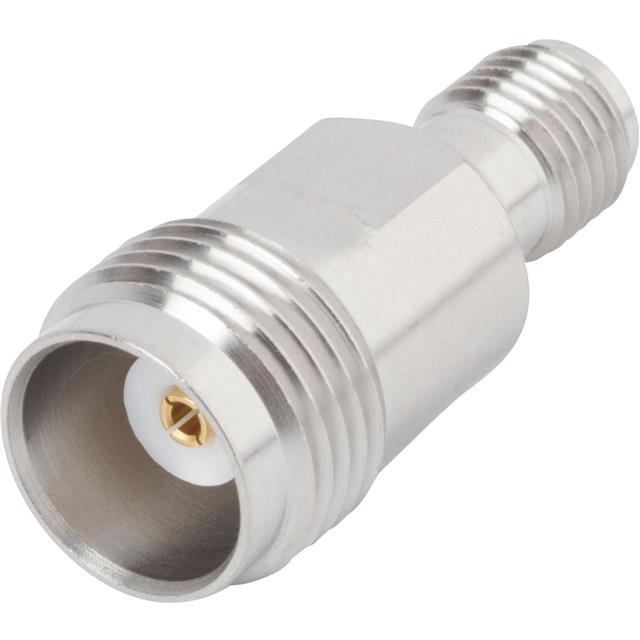

 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | 500 cycles | Threaded | Straight | Between Series | Female Socket | PTNC Jack | Gold | SMA to PTNC | Female | Jack to Jack | Free Hanging (In-Line) | Female Socket SMA Jack | 50 Ohm | 15 GHz | -65 °C | 165 °C |
