C2D05120 Series

Catalog

DIODE SIL CARB 1.2KV 17.5A TO220

Part	Package Name	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Capacitance	Technology	Voltage - Forward (Vf) (Max)	Current - Average Rectified (Io)	Package / Case	Mounting Type	Voltage - DC Reverse (Vr) (Max)	Current - Reverse Leakage
Wolfspeed, Inc. C2D05120A	TO-220-2	500 mA	No Recovery Time	500 mA 500 mA	175 °C	-55 °C	455 pF	SiC (Silicon Carbide) Schottky	1.8 V	17.5 A	TO-220-2	Through Hole	1200 V	200 µA

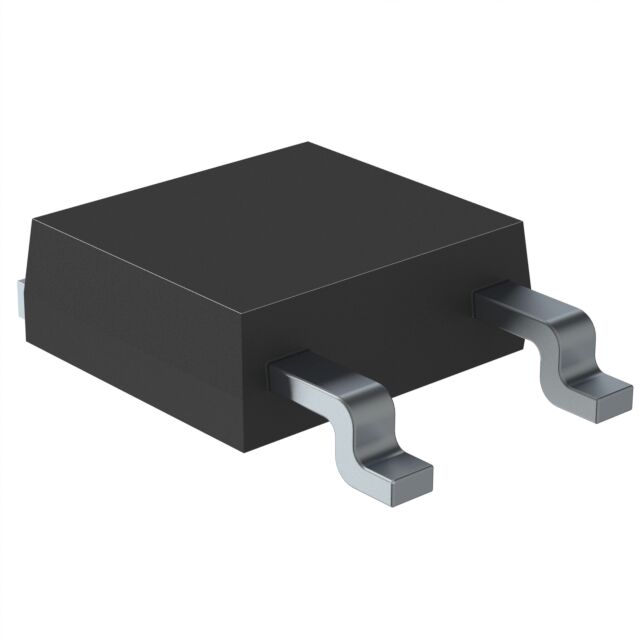

Wolfspeed, Inc. C2D05120E-TR	TO-252-2	500 mA	No Recovery Time	500 mA 500 mA	175 °C	-55 °C	455 pF	SiC (Silicon Carbide) Schottky	1.8 V	17.5 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount	1200 V	200 µA
Wolfspeed, Inc. C2D05120E	TO-252-2	500 mA	No Recovery Time	500 mA 500 mA	175 °C	-55 °C	455 pF	SiC (Silicon Carbide) Schottky	1.8 V	17.5 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount	1200 V	200 µA
