Q-680480 Series

Catalog

CBL ASSY RPSMA-TNC PLUG-JACK 3"

Part	2nd Connector Mounting Type	Overall Impedance	Features	2nd Connector Mounting Feature	Cable Impedance	Cable Type	1st Connector	Connector Impedance	Style	2nd Connector	Color	Frequency - Max	1st Contact Gender	Length	1st Connector Mounting Type	2nd Contact Gender	Length (ft)

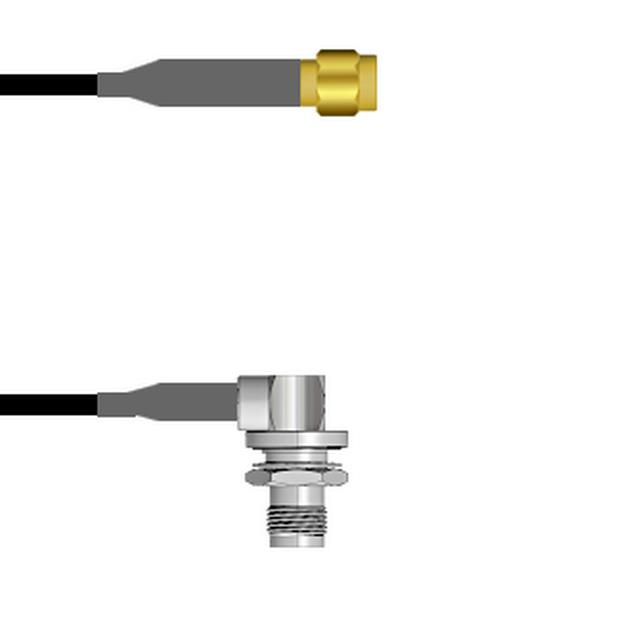

McGill Microwave Systems Q-680480003003I	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	174 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Black	1 GHz	Female	3 "	Free Hanging (In-Line)	Female
McGill Microwave Systems Q-680480003012I	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	174 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Black	1 GHz	Female	12 in	Free Hanging (In-Line)	Female
McGill Microwave Systems Q-680480003108I	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	174 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Black	1 GHz	Female	9 ft	Free Hanging (In-Line)	Female
McGill Microwave Systems Q-680480003036I	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	174 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Black	1 GHz	Female	36 in	Free Hanging (In-Line)	Female

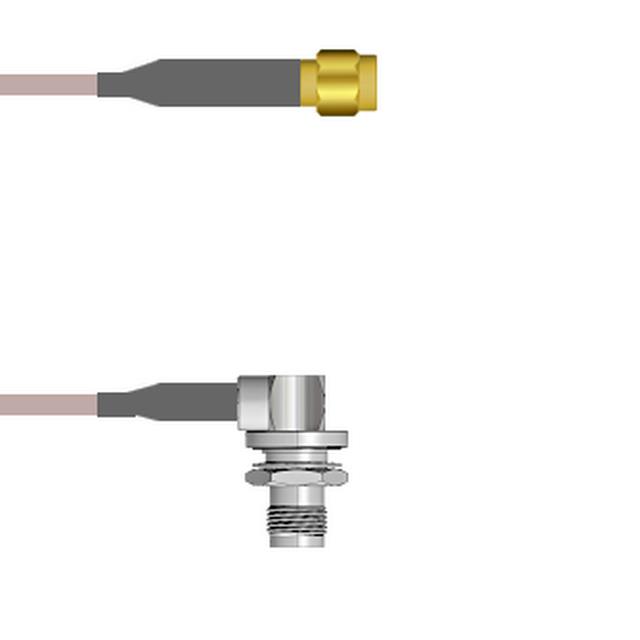

McGill Microwave Systems Q-680480005003M	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	316 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Copper	3 GHz	Female	118.1 in	Free Hanging (In-Line)	Female
McGill Microwave Systems Q-680480005024I	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	316 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Copper	3 GHz	Female	24 in	Free Hanging (In-Line)	Female
McGill Microwave Systems Q-680480003060I	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	174 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Black	1 GHz	Female	1524 mm	Free Hanging (In-Line)	Female	5 ft
McGill Microwave Systems Q-680480005009I	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	316 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Copper	3 GHz	Female	228.6 mm	Free Hanging (In-Line)	Female
McGill Microwave Systems Q-680480003.75M	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	174 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Black	1 GHz	Female	29.53 in	Free Hanging (In-Line)	Female
McGill Microwave Systems Q-680480003003M	Panel Mount	50 Ohms	Shielded	Bulkhead - Front Side Nut	50 Ohms	174 RG	RP-SMA Plug	50 Ohms	RP-SMA TNC	Right Angle TNC Jack	Black	1 GHz	Female	118.1 in	Free Hanging (In-Line)	Female
