RT071412 Series

Catalog

12 POSITION JAM NUT RECEPTACLE, MALE, SHELL SIZE 14, SILICONE SEAL, AND END CAP WITH INDIVIDUAL WIRE SEALING /BAG ROHS COMPLIANT

Part	Number of Positions	Housing Color	Mounting Type	Fastening Type	Primary Material	Features	Connector Type	Shell Material	Shell Finish	Contact Type	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Material Flammability Rating	Contact Size	Mounting Feature	Contact Shape	Type	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert Width	Shell Size - Insert Length	Insert Material	Note	Includes Total Count	Includes	Contact Finish - Mating	Contact Finish Thickness - Mating	Voltage Rating	Voltage Rating (Type)	Current Rating	Termination	Color

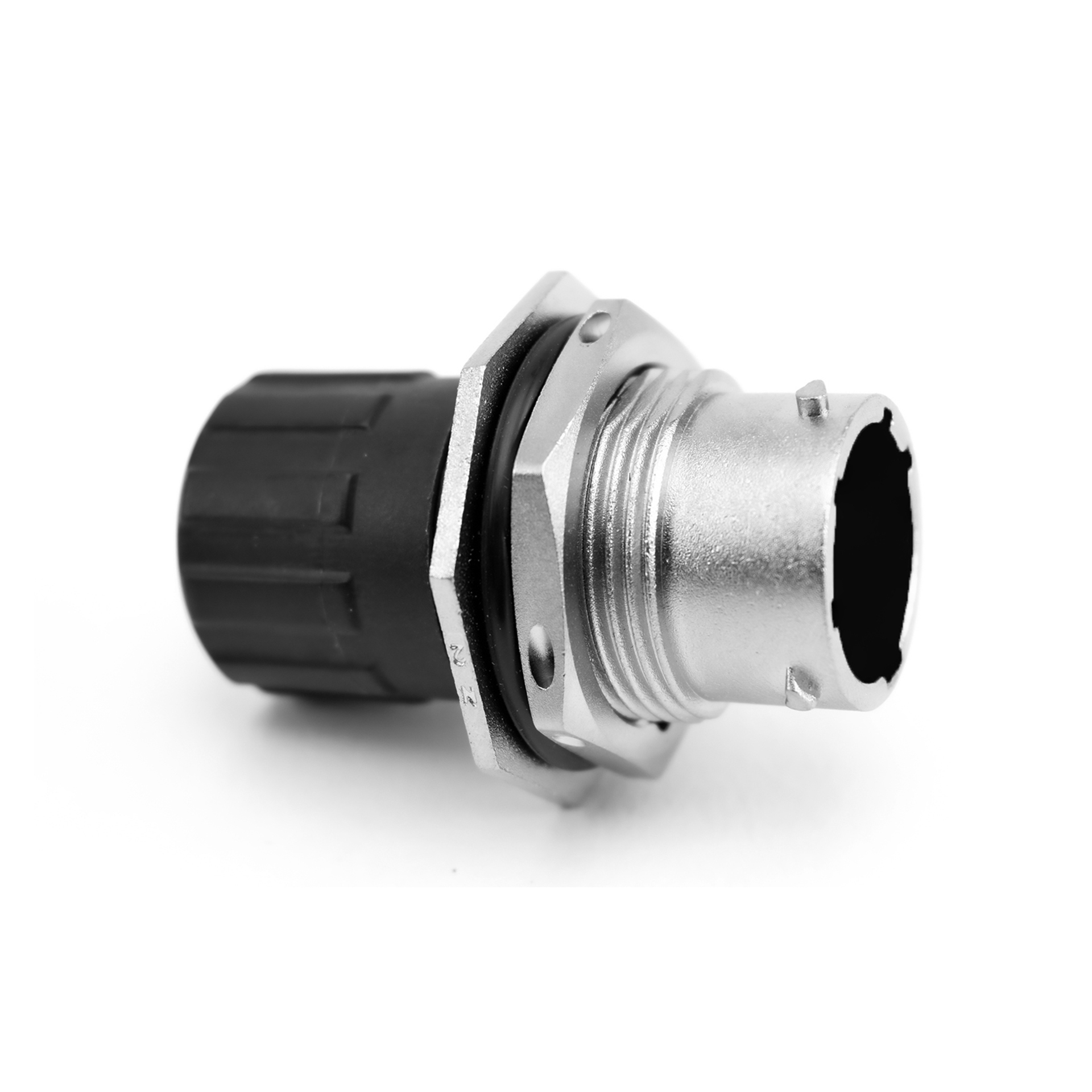

McGill Microwave Systems RT071412PNHEC03	12	Silver	Panel Mount	Bayonet Lock	Metal	Cap (Cover)	Receptacle Housing	Zinc Alloy	Nickel	Crimp	N (Normal)	Dust Tight Waterproof	IP67	Shielded	UL94 V-0	16 S	Bulkhead Front Side Nut	Circular	For Male Pins	125 °C	-40 °C	12 mm	14 mm	Thermoplastic	Contacts Not Included

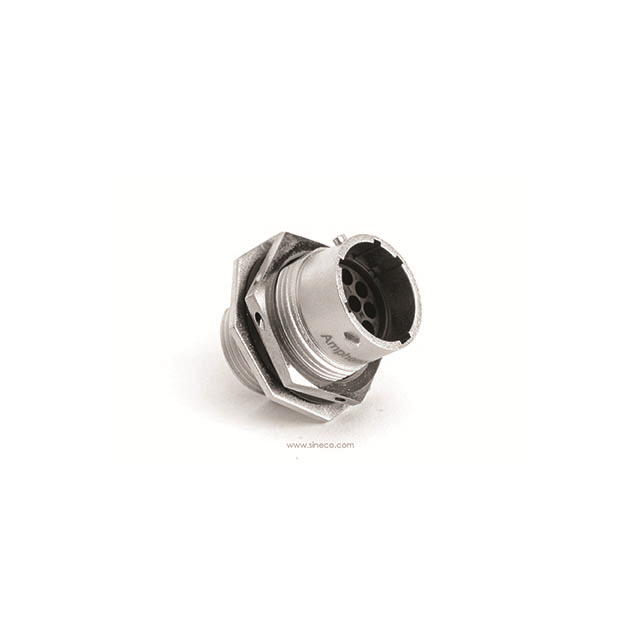

McGill Microwave Systems RT071412PNH03	12	Silver	Panel Mount	Bayonet Lock			Receptacle Housing	Zinc Alloy	Nickel	Crimp	N (Normal)	Dust Tight Waterproof	IP67	Shielded	UL94 V-0	16 S	Bulkhead Front Side Nut	Circular	For Male Pins	125 °C	-40 °C	12 mm	14 mm	Thermoplastic	Contacts Not Included	4 pcs	Connector Gasket Nut O-Ring

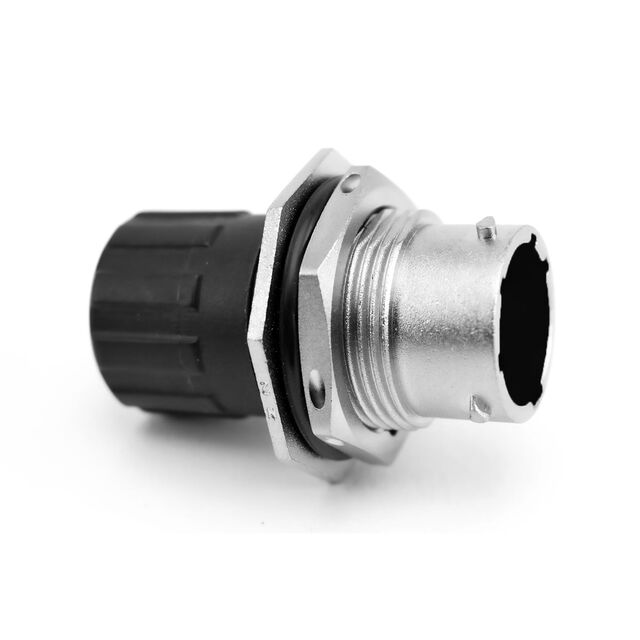

McGill Microwave Systems RT071412PNHECR	12	Silver	Panel Mount	Bayonet Lock	Metal	Cap (Cover)	Receptacle Housing	Zinc Alloy	Nickel	Crimp	N (Normal)	Dust Tight Waterproof	IP67	Shielded	UL94 V-0	16 S	Bulkhead Front Side Nut	Circular	For Male Pins	105 °C	-40 °C	12 mm	14 mm	Thermoplastic	Contacts Not Included
McGill Microwave Systems RT071412PNH-K	12		Panel Mount	Bayonet Lock	Metal		Male Pins Receptacle	Zinc Die Cast	Nickel		N (Normal)	Dust Tight Waterproof	IP67				Bulkhead Front Side Nut			105 °C	-40 °C	12 mm	14 mm					Gold	Flash	250 V	DC	13 A	Crimp	Silver
McGill Microwave Systems RT071412PNH	12	Silver	Panel Mount	Bayonet Lock			Receptacle Housing	Zinc Alloy	Nickel	Crimp	N (Normal)	Dust Tight Waterproof	IP67	Shielded	UL94 V-0	16 S	Bulkhead Front Side Nut	Circular	For Male Pins	105 °C	-40 °C	12 mm	14 mm	Thermoplastic	Contacts Not Included
McGill Microwave Systems RT071412PNHEC03R	12	Silver	Panel Mount	Bayonet Lock		Backshell	Receptacle Housing	Zinc Alloy	Nickel	Crimp	N (Normal)	Dust Tight Waterproof	IP67	Shielded	UL94 V-0	16 S	Bulkhead Front Side Nut	Circular	For Male Pins	125 °C	-40 °C	12 mm	14 mm	Thermoplastic	Contacts Not Included	3 pcs	Connector Nut O-Ring

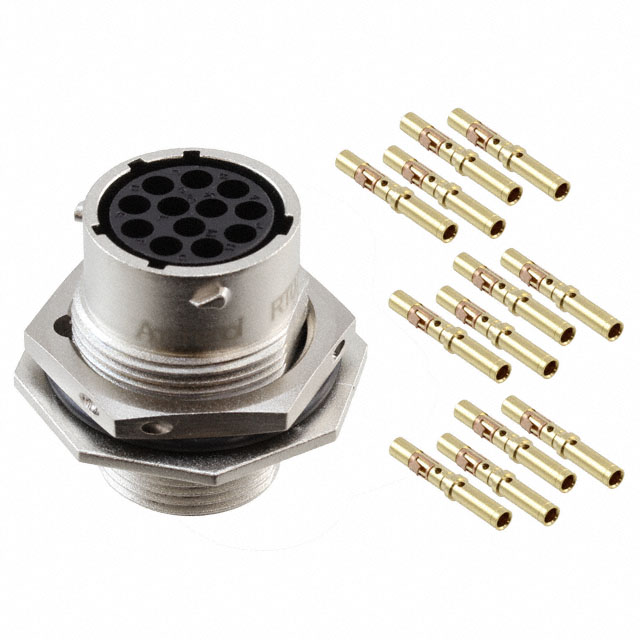

McGill Microwave Systems RT071412SNH-K	12		Panel Mount	Bayonet Lock	Metal		Female Sockets Receptacle	Zinc Die Cast	Nickel		N (Normal)	Dust Tight Waterproof	IP67				Bulkhead Front Side Nut			105 °C	-40 °C	12 mm	14 mm					Gold	Flash	250 V	DC	13 A	Crimp	Silver
McGill Microwave Systems RT071412SNH	12	Silver	Panel Mount	Bayonet Lock			Receptacle Housing	Zinc Alloy	Nickel	Crimp	N (Normal)	Dust Tight Waterproof	IP67	Shielded	UL94 V-0	16 S	Bulkhead Front Side Nut	Circular	For Female Sockets	105 °C	-40 °C	12 mm	14 mm	Thermoplastic	Contacts Not Included
