132000 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

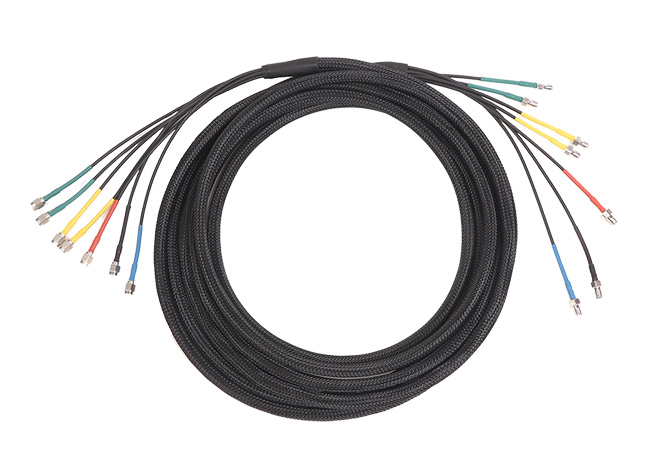

PROFIN PLUS CABLE KIT
| Part | For Use With/Related Products | Accessory Type | Number of Bands | Antenna Type | Power - Max | Height (Max) | Gain | Termination Type | Frequency Group | Applications | Ingress Protection | Frequency Range (Band 4) Minimum | Frequency Range (Band 1) Minimum | Frequency Range (Band 3) Minimum | Frequency Range (Band 4) Maximum | Frequency Range (Band 5) Maximum | Frequency Range (Band 2) Maximum | Frequency Range (Band 3) Maximum | Frequency Range (Band 5) Minimum | Frequency Range (Band 2) Minimum | Frequency Range (Band 1) Maximum | Frequency (Center/Band) | Frequency (Center/Band) - 5 | Frequency (Center/Band) - 6 | Frequency (Center/Band) - 4 | Frequency (Center/Band) - 3 | Frequency (Center/Band) - 2 | Frequency (Center/Band) - 1 | RF Family/Standard | Mounting Type | VSWR | VSWR Maximum | VSWR Minimum | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 130002476 132000269 | Cable | ||||||||||||||||||||||||||||||||

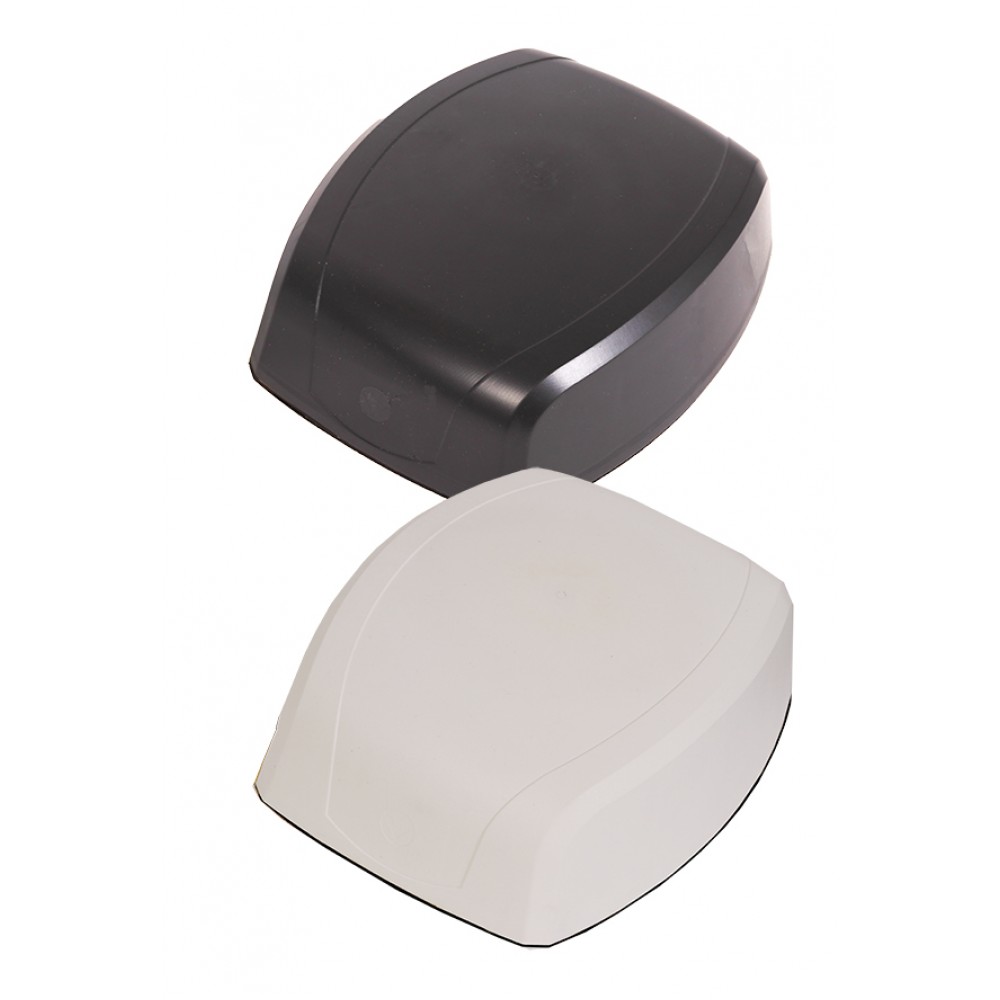

 McGill Microwave Systems | 6 | Module | 100 VA | 2.587 in | 4 dBi 6 dBi 7 dBi | SMA Male | Wide Band | 2G 3G 4G 5G GNSS GPS LTE | IP67 | 2.4 GHz | 617 MHz | 1.71 GHz | 3.8 GHz | 6 GHz | 1.609 GHz | 2.5 GHz | 5 GHz | 1.559 GHz | 960 MHz | 1.575GHz 1.584GHz 2.45GHz 2.755GHz 5.5GHz 788.5MHz | 2.755 GHz | 5.5 GHz | 2.45 GHz | 1.584 GHz | 1.575 GHz | 788.5 MHz | Cellular | Roof Mount | 2 2.2 | 2.2 | 2 | |||

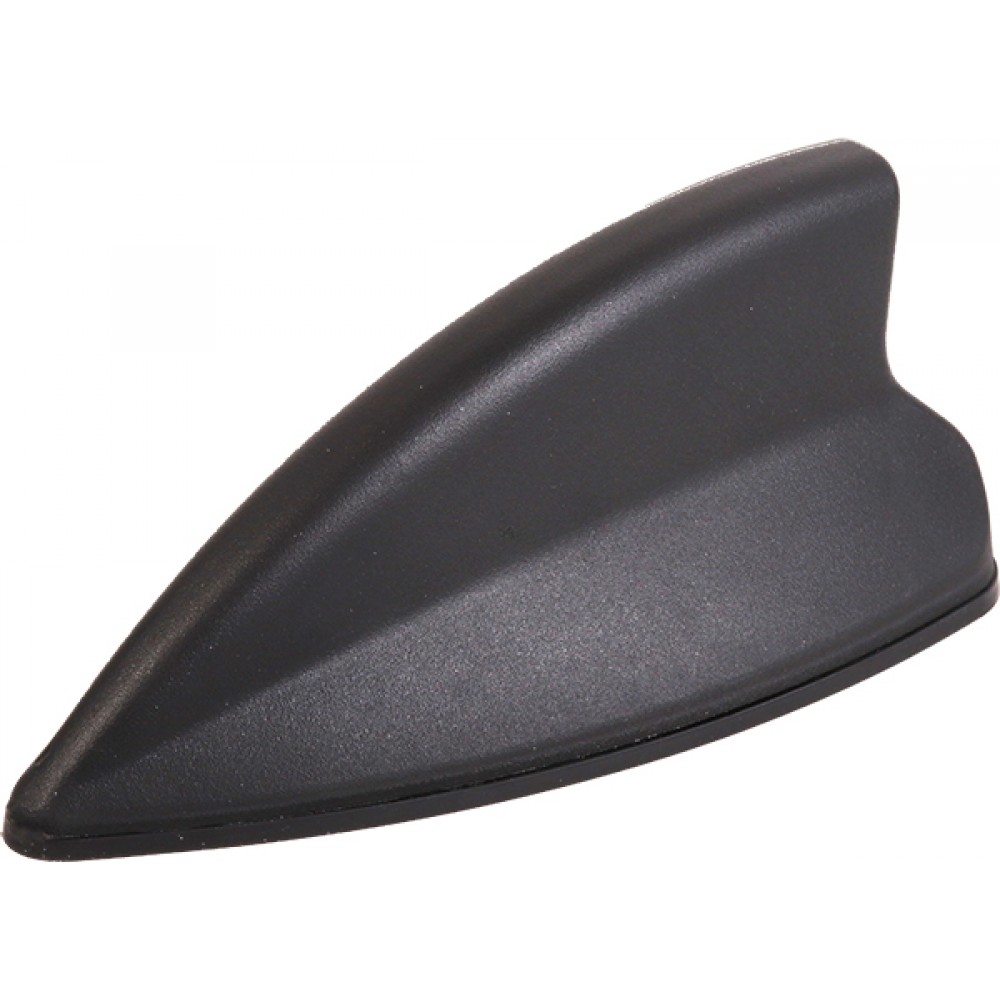

 McGill Microwave Systems | 5 | Module | 25 W | 2.717 in | 3 dBi 7 dBi | SMA Male | Wide Band | 2G 3G 4G 5G BEIDOU Galileo GLONASS GNSS GPS LTE | IP69K | 2.39 GHz | 617 MHz | 1.71 GHz | 3.8 GHz | 7.2 GHz | 1.609 GHz | 2.485 GHz | 4.9 GHz | 1.559 GHz | 960 MHz | 1.584GHz 2.437GHz 2.755GHz 6.05GHz 788.5MHz | 6.05 GHz | 2.755 GHz | 2.437 GHz | 1.584 GHz | 788.5 MHz | Cellular Navigation | Surface Mount | 2 2.5 | 2.5 | 2 | LNA |
