KD10 Series

Catalog

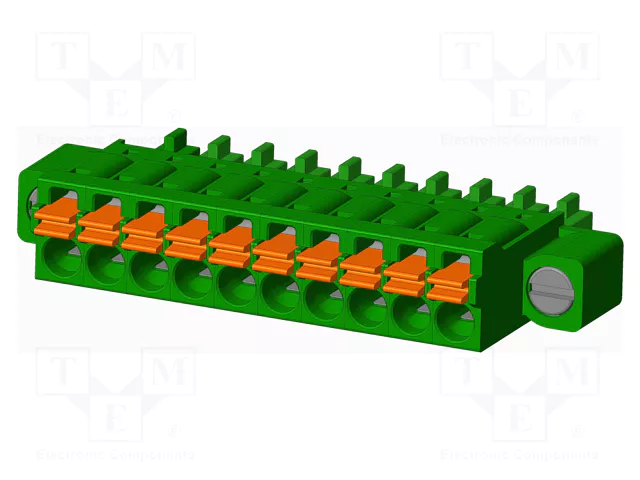

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 12A; 300V; 1X10

Part	Termination Style	Positions Per Level	Mounting Type	Contact Mating Finish	Plug Wire Entry Angle	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Levels	Type	Color	Pitch	Number of Positions	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Features	Current - UL	Housing Material	Contact Material	Insulation Height	Material Flammability Rating	Wire Strip Length (Min)	Wire Strip Length (Max)
McGill Microwave Systems KD1050510000G	Push-In Spring Screwless - Leg Spring	10	Free Hanging (In-Line)	Tin	180 °	24 AWG	14 AWG	1	Female Sockets Plug	Green	5.08 mm	10	300 V	-40 °C	115 °C	Mating Flange Retention Latches (Wire Side)	12 A	Thermoplastic	Phosphor Bronze	0.429 in	UL94 V-0	11 mm	12 mm
McGill Microwave Systems KD1010500000G	Push-In Spring Screwless - Leg Spring	10	Free Hanging (In-Line)	Tin	180 °	24 AWG	16 AWG	1	Female Sockets Plug	Green	0.138 in	10	160 V	-40 °C	115 °C		5.5 A	Thermoplastic	Phosphor Bronze	0.307 in	UL94 V-0	9 mm	10 mm
McGill Microwave Systems KD1010510000G	Push-In Spring Screwless - Leg Spring	10	Free Hanging (In-Line)	Tin	180 °	24 AWG	16 AWG	1	Female Sockets Plug	Green	0.138 in	10	160 V	-40 °C	115 °C	Mating Flange	5.5 A	Thermoplastic	Phosphor Bronze	0.307 in	UL94 V-0	9 mm	10 mm
McGill Microwave Systems KD1030520000G	Push-In Spring Screwless - Leg Spring	10	Free Hanging (In-Line)	Tin	180 °	24 AWG	16 AWG	1	Female Sockets Plug	Green	0.15 in	10	300 V	-40 °C	115 °C	Latch Lock	5.5 A	Thermoplastic	Phosphor Bronze	0.307 in	UL94 V-0	9 mm	10 mm
McGill Microwave Systems KD1070500000G	Push-In Spring Screwless - Leg Spring	10	Free Hanging (In-Line)	Tin	180 °	24 AWG	14 AWG	1	Female Sockets Plug	Green	0.197 in	10	300 V	-40 °C	115 °C	Retention Latches (Non-Wire Side)	12 A	Thermoplastic	Phosphor Bronze	0.429 in	UL94 V-0	11 mm	12 mm
McGill Microwave Systems KD1010520000G	Push-In Spring Screwless - Leg Spring	10	Free Hanging (In-Line)	Tin	180 °	24 AWG	16 AWG	1	Female Sockets Plug	Green	0.138 in	10	160 V	-40 °C	115 °C	Latch Lock	5.5 A	Thermoplastic	Phosphor Bronze	0.307 in	UL94 V-0	9 mm	10 mm
McGill Microwave Systems KD1050500000G	Push-In Spring Screwless - Leg Spring	10	Free Hanging (In-Line)	Tin	180 °	24 AWG	14 AWG	1	Female Sockets Plug	Green	5.08 mm	10	300 V	-40 °C	115 °C	Retention Latches (Non-Wire Side)	12 A	Thermoplastic	Phosphor Bronze	0.429 in	UL94 V-0	11 mm	12 mm
