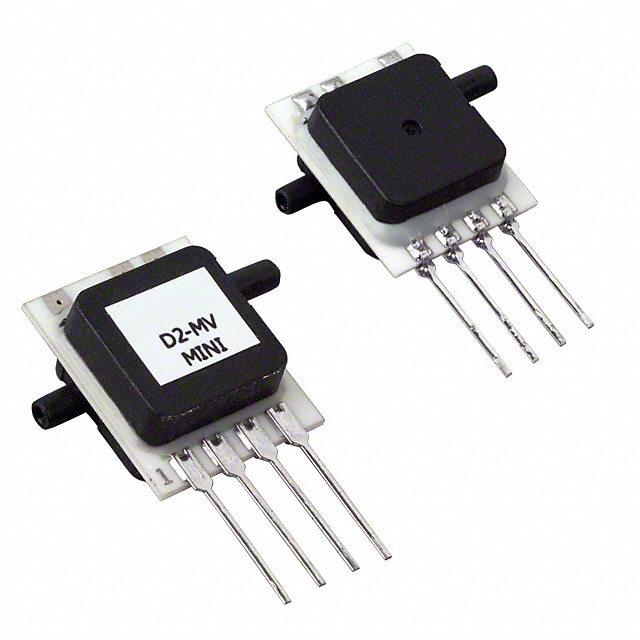

D2-MV-MINI Series

Catalog

SENSOR 0.72PSID 0.08" .02V

Part	Port Style	Operating Temperature (Max)	Operating Temperature (Min)	Pressure Type	Package / Case	Accuracy	Applications	Features	Output Type	Termination Style	Output Voltage (Max)	Port Diameter	Port Gender	Port Feature	Mounting Type	Operating Pressure	Voltage - Supply
McGill Microwave Systems 20 INCH-D2-MV-MINI	Barbless	85 °C	-25 °C	Differential	4-SIP Module	0.25 %	Board Mount	Temperature Compensated	Wheatstone Bridge	PC Pin	20 mV	0.08 in	Male	Dual Tube	Through Hole	0.72 PSI	16 V
McGill Microwave Systems 2 INCH-D2-MV-MINI	Barbless	85 °C	-25 °C	Differential	4-SIP Module	0.25 %	Board Mount	Temperature Compensated	Wheatstone Bridge	PC Pin	10 mV	0.08 in	Male	Dual Tube	Through Hole	0.07 PSI	16 V
McGill Microwave Systems 10 INCH-D2-MV-MINI	Barbless	85 °C	-25 °C	Differential	4-SIP Module	0.25 %	Board Mount	Temperature Compensated	Wheatstone Bridge	PC Pin	20 mV	0.08 in	Male	Dual Tube	Through Hole	0.36 PSI	16 V
McGill Microwave Systems 30 INCH-D2-MV-MINI	Barbless	85 °C	-25 °C	Differential	4-SIP Module	0.25 %	Board Mount	Temperature Compensated	Wheatstone Bridge	PC Pin	20 mV	0.08 in	Male	Dual Tube	Through Hole	1.08 PSI	16 V
McGill Microwave Systems 5 INCH-D2-MV-MINI	Barbless	85 °C	-25 °C	Differential	4-SIP Module	0.25 %	Board Mount	Temperature Compensated	Wheatstone Bridge	PC Pin	20 mV	0.08 in	Male	Dual Tube	Through Hole	0.18 PSI	16 V
