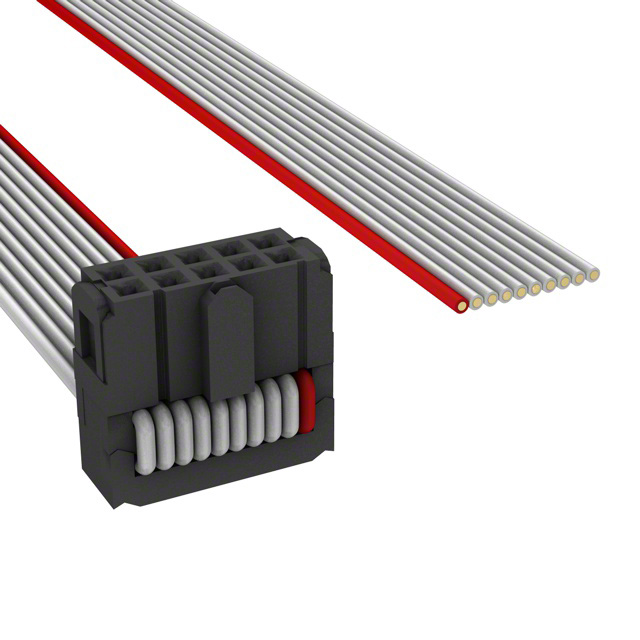

A1DXG Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE-AKR60G/ AE60G / X

Part	Shielding	Number of Rows	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Features	Number of Positions	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Color	Number of Positions
TE Connectivity Raychem Cable Protection A1DXG-6036G	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	60	IDC	15 µin	0.38 µm	Gold	Socket to Cable
TE Connectivity Raychem Cable Protection A1DXG-1036M	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	10	IDC	15 µin	0.38 µm	Gold	Socket to Cable	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1DXG-6436M	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	64	IDC	15 µin	0.38 µm	Gold	Socket to Cable	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1DXG-2636M	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	26	IDC	15 µin	0.38 µm	Gold	Socket to Cable	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1DXG-2436M	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	24	IDC	15 µin	0.38 µm	Gold	Socket to Cable	Multiple Ribbon
TE Connectivity Raychem Cable Protection A1DXG-5036G	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	50	IDC	15 µin	0.38 µm	Gold	Socket to Cable
TE Connectivity Raychem Cable Protection A1DXG-4036G	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	40	IDC	15 µin	0.38 µm	Gold	Socket to Cable
TE Connectivity Raychem Cable Protection A1DXG-1036G	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	10	IDC	15 µin	0.38 µm	Gold	Socket to Cable
TE Connectivity Raychem Cable Protection A1DXG-1636M	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief		IDC	15 µin	0.38 µm	Gold	Socket to Cable	Multiple Ribbon	16
TE Connectivity Raychem Cable Protection A1DXG-3436M	Unshielded	2	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Polarizing Key Strain Relief	34	IDC	15 µin	0.38 µm	Gold	Socket to Cable	Multiple Ribbon
