2.4mm Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

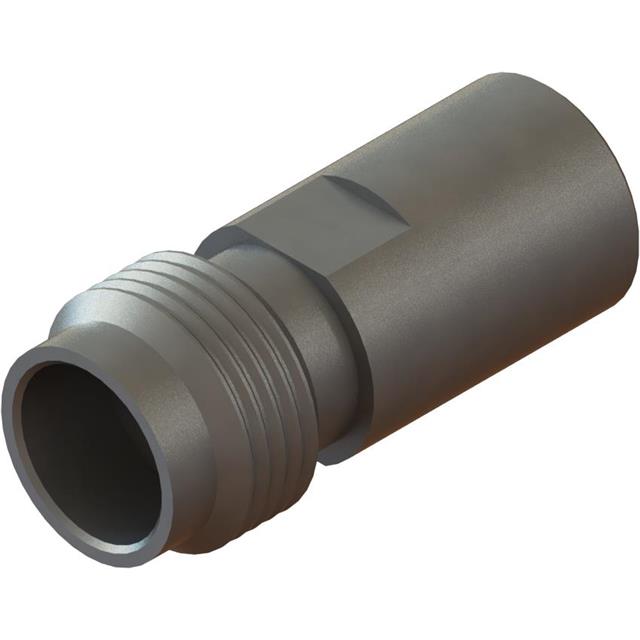

RF TERMINATORS 2.4MM F TERMINATION TERM DC TO 50GHZ
| Part | Body Material | Dielectric Material | Mounting Type | Connector Type | Contact Finish | Connector Plug Diameter | Connector Style | Impedance | Contact Material | Frequency - Max | Shield Termination | Fastening Type | Contact Termination | Housing Color | Number of Ports | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Stainless Steel | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | Female Socket Jack | Gold | 2.4 mm | APC-2.4 OS-50 | 50 Ohm | Beryllium Copper | 50 GHz | ||||||
 McGill Microwave Systems | Board Edge End Launch | Female Socket Jack | 2.4 mm | APC-2.4 OS-50 | 50 Ohm | 50 GHz | Solder | Threaded | Solder | Gold | 1 | Beryllium Copper | ||||
 McGill Microwave Systems | Stainless Steel | Polychlorotrifluoroethylene (PCTFE) | Cap Free Hanging | Male Pin Plug | Gold | 2.4 mm | APC-2.4 OS-50 | 50 Ohm | Brass | 50 GHz |
