ADG409 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

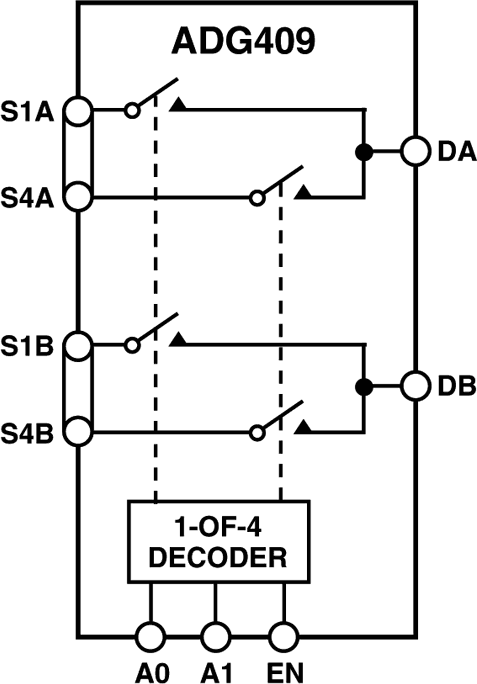

LC2MOS ±15 V 4 CHANNEL HIGH PERFORMANCE ANALOG MULTIPLEXER

Part	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Number of Circuits	Current - Leakage (Max)	Channel-to-Channel Matching (ΔRon) (Max)	On-State Resistance (Max)	Crosstalk	Voltage - Supply, Single (V+)	Mounting Type	Voltage - Supply, Dual (Maximum)	Voltage - Supply, Dual (Minimum)	Demultiplexer Outputs	Multiplexer Inputs	Charge Injection	Package Width	Package Length	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Switch Circuit Type
Analog Devices Inc./Maxim Integrated ADG409BRZ-REEL	85 °C	-40 °C	16-SOIC	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	3.9 mm	0.154 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BR-REEL7	85 °C	-40 °C	16-SOIC	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	3.9 mm	0.154 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BR-REEL	85 °C	-40 °C	16-SOIC	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	3.9 mm	0.154 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BRZ-REEL7	85 °C	-40 °C	16-SOIC	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	3.9 mm	0.154 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BRUZ-REEL7	85 °C	-40 °C	16-TSSOP	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	4.4 mm	0.173 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BRUZ	85 °C	-40 °C	16-TSSOP	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	4.4 mm	0.173 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BN	85 °C	-40 °C	16-DIP 16-PDIP	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Through Hole	15 V	-15 V	1	4	20 pC	7.62 mm	0.3 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BRZ	85 °C	-40 °C	16-SOIC	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	3.9 mm	0.154 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BRUZ-REEL	85 °C	-40 °C	16-TSSOP	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	4.4 mm	0.173 in	11 pF	20 pF	SP4T
Analog Devices Inc./Maxim Integrated ADG409BR	85 °C	-40 °C	16-SOIC	2	500 pA	15 Ohm	100 Ohms	-85 dB	12 V	Surface Mount	15 V	-15 V	1	4	20 pC	3.9 mm	0.154 in	11 pF	20 pF	SP4T
