FLS6BS Series

Catalog

CONN CIRCULAR SKT 3 POS ST CABLE MOUNT 3 TERMINAL 1 PORT BAG

Part	Contact Shape	Orientation	Shielding	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Primary Material	Fastening Type	Shell Size - Insert Length	Shell Size - Insert Width	Material Flammability Rating	Number of Positions	Features	Connector Type	Contact Type	Contact Size	Shell Material	Note	Insert Material	Housing Color	Ingress Protection IP Rating	Ingress Protection Description	Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)
McGill Microwave Systems FLS6BS10N3S03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	10 mm	3 mm	UL94 V-0	3	Backshell Coupling Nut	Plug Housing	Crimp	16 S	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets
McGill Microwave Systems FLS6BS10N3P03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	10 mm	3 mm	UL94 V-0	3	Backshell Coupling Nut	Plug Housing	Crimp	16 S	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets

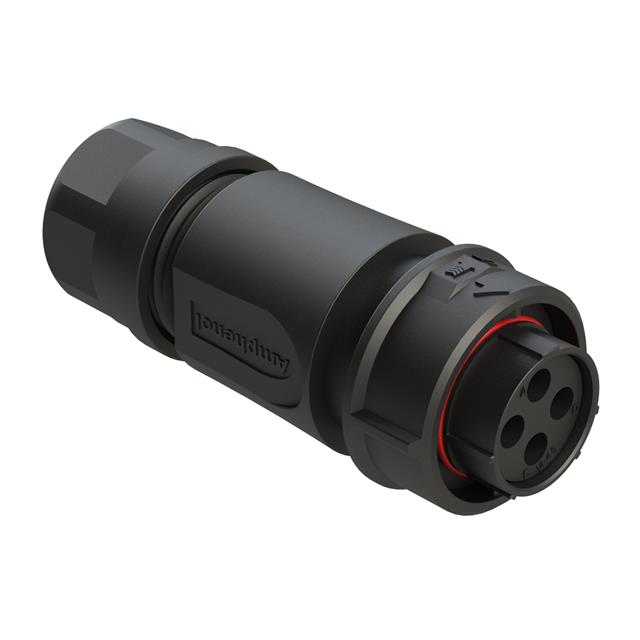

McGill Microwave Systems FLS6BS14N4S03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	14 mm	4 mm	UL94 V-0	4	Backshell Coupling Nut	Plug Housing	Crimp	12	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets
McGill Microwave Systems FLS6BS14N19P03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock			UL94 V-0	19	Backshell Coupling Nut	Plug Housing	Crimp	20	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins	19	14 S
McGill Microwave Systems FLS6BS10N4P03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	10 mm	4 mm	UL94 V-0	4	Backshell Coupling Nut	Plug Housing	Crimp	16 S	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets
McGill Microwave Systems FLS6BS10N2S03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	10 mm	4 mm	UL94 V-0	4	Backshell Coupling Nut	Plug Housing	Crimp	16 20	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets
McGill Microwave Systems FLS6BS12N3S03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	12 mm	3 mm	UL94 V-0	3	Backshell Coupling Nut	Plug Housing	Crimp	16 S	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Female Sockets
McGill Microwave Systems FLS6BS12N2P03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	12 mm	4 mm	UL94 V-0	4	Backshell Coupling Nut	Plug Housing	Crimp	12 20	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins
McGill Microwave Systems FLS6BS12N8P03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	12 mm	8 mm	UL94 V-0	8	Backshell Coupling Nut	Plug Housing	Crimp	16 S	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins
McGill Microwave Systems FLS6BS14N7P03	Circular	N (Normal)	Unshielded	Free Hanging (In-Line)	125 °C	-40 °C	Plastic	Bayonet Lock	14 mm	7 mm	UL94 V-0	7	Backshell Coupling Nut	Plug Housing	Crimp	16 S	Thermoplastic	Contacts Not Included	Thermoplastic	Black	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	For Male Pins
