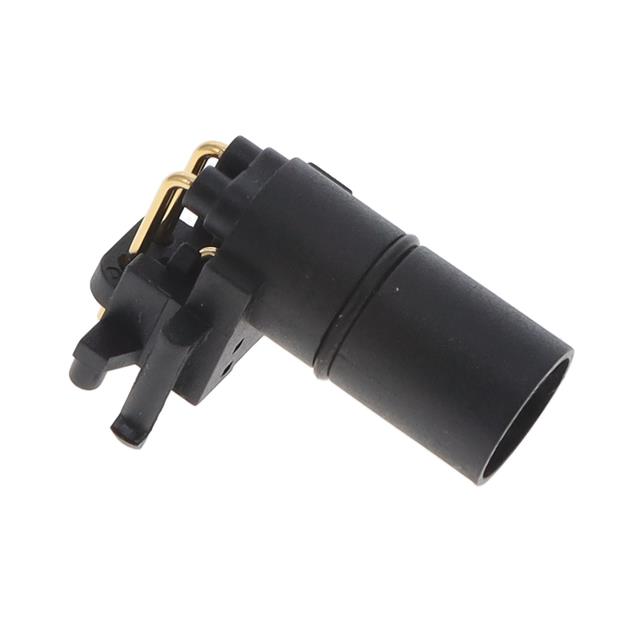

M12D-04PMMR Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
M12 D CODE 90 DIP, PLASTIC, M CO
| Part | Fastening Type | Shell Size - Insert | Operating Temperature (Min) | Operating Temperature (Max) | Connector Type | Features | Orientation | Primary Material | Ingress Protection Description | Ingress Protection IP Rating | Current Rating | Contact Finish - Mating | Shell Finish | Mounting Type | Insert Material | Termination | Shell Material | Number of Positions | Shielding | Voltage Rating | Color | Contact Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Threaded | M12-4 | -40 °C | 105 °C | Male Pins Receptacle | Board Guide Board Lock | D | Metal | Dust Tight Waterproof | IP67 | 4 A | Gold | Nickel | Right Angle Through Hole | Thermoplastic | Solder | Zinc Alloy | 4 | Shielded | 250 V | Silver | Copper Alloy | |
McGill Microwave Systems | Threaded | M12-4 | -40 °C | 105 °C | Male Pins Receptacle | Board Guide Board Lock | D | Metal | Dust Tight Waterproof | IP68 | 4 A | Gold | Nickel | Panel Mount Right Angle Through Hole | Glass Filled Nylon PA Polyamide | Solder | Zinc Alloy | 4 | Unshielded | 250 V | Silver | Copper Alloy | Bulkhead Front Side Nut |
