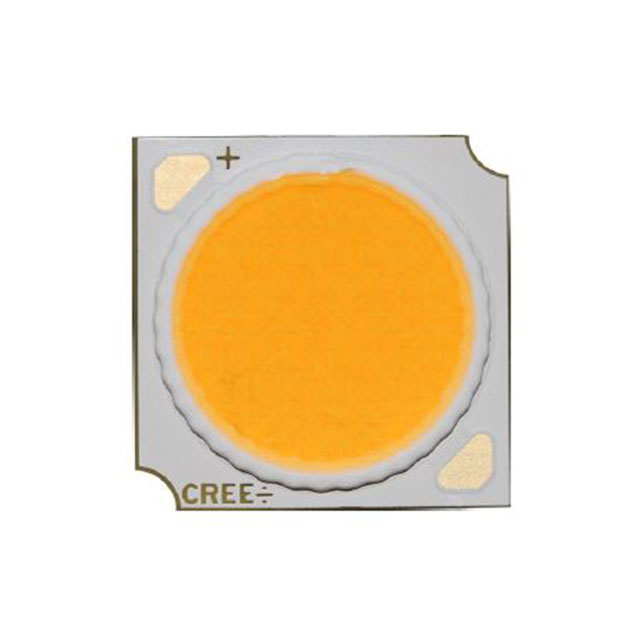

CMA1840 Series

Catalog

LED COB XLAMP WARM WHT SQ 3000K

Part	Light Emitting Surface (LES) Diameter	CCT (K)	CCT Description	Height	Color	Configuration	CRI (Color Rendering Index)	Lens Type	Current - Test	Size / Dimension Width	Size / Dimension Length	Type	Viewing Angle	Temperature - Test	Voltage - Forward (Vf) (Typ)	Current - Max	Luminous Flux (Typical)	Lumens/Watt
CreeLED, Inc. CMA1840-0000-00PN0U0A30U	14 mm	3000 K	3-Step MacAdam Ellipse	1.7 mm	Warm White	Square	90	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	2.3 A
CreeLED, Inc. CMA1840-0000-00PN0U0A30H	14 mm	3000 K	2-Step MacAdam Ellipse	1.7 mm	Warm White	Square	90	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	2.3 A
CreeLED, Inc. CMA1840-0000-000N0H0A40H	14 mm	4000 K	2-Step MacAdam Ellipse	1.7 mm	Neutral White	Square	80	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	2.3 A	5595 lm	147 lm/W
CreeLED, Inc. CMA1840-0000-000N0U0A27G	14 mm	2700 K	3-Step MacAdam Ellipse	1.7 mm	Warm White	Square	90	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	2.3 A	4278 lm	112 lm/W
CreeLED, Inc. CMA1840-0000-000N0H0A30H	14 mm	3000 K	2-Step MacAdam Ellipse	1.7 mm	Warm White	Square	80	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	2.3 A	5300 lm	139 lm/W
CreeLED, Inc. CMA1840-0000-00PN0U0A30H	14 mm	3000 K	2-Step MacAdam Ellipse	1.7 mm	Warm White	Square	90	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	2.3 A
CreeLED, Inc. CMA1840-0000-00PN0U0A40H	14 mm	4000 K	2-Step MacAdam Ellipse	1.7 mm	Neutral White	Square	90	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	2.3 A
CreeLED, Inc. CMA1840-0000-00PN0U0A40G	14 mm	4000 K	3-Step MacAdam Ellipse	1.7 mm	Neutral White	Square	90	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	1.26 A	5147 lm	135 lm/W
CreeLED, Inc. CMA1840-0000-00PN0Z0A35H	14 mm	3500 K	2-Step MacAdam Ellipse	1.7 mm	Warm White	Square	95	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	2.3 A

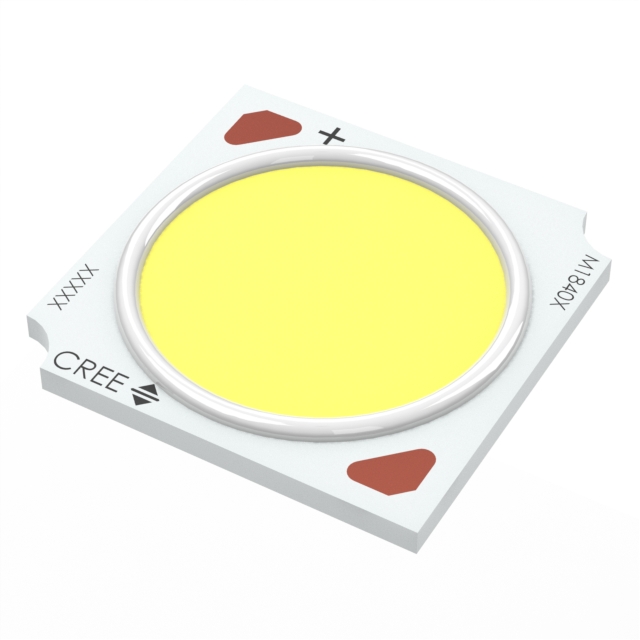

CreeLED, Inc. CMA1840-0000-00PN0U0A30G	14 mm	3000 K	3-Step MacAdam Ellipse	1.7 mm	Warm White	Square	90	Flat	1.1 A	17.85 mm	17.85 mm	Chip On Board (COB)	115 °	85 °C	34.7 V	1.26 A	5035 lm	132 lm/W
