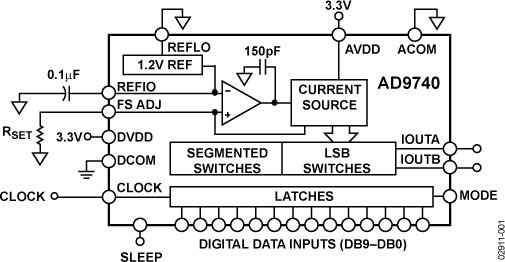

AD9740 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

10-BIT, 210 MSPSTXDAC®D/A CONVERTER

Part	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Number of Bits	Data Interface	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Package Width	Package Length	Architecture	Settling Time (Typical)	Differential Output	Number of D/A Converters	Output Type	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Mounting Type	Reference Type	DNL (LSB) Tolerance	INL (LSB) Tolerance	Package / Case	Grade	Supplied Contents	Settling Time	Number of DAC's	DAC Type	Contents	Sampling Rate (Per Second)	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD9740ARZRL	-40 °C	85 °C	28-SOIC	10 bits	Parallel	2.7 V	3.6 V	7.5 mm	0.295 in	Current Source	11 ns	Yes	1 count	Current - Unbuffered	2.7 V	3.6 V	Surface Mount	External Internal	0.12 LSB	0.15 LSB
Analog Devices Inc./Maxim Integrated AD9740ARUZRL7	-40 °C	85 °C	28-TSSOP	10 bits	Parallel	2.7 V	3.6 V	4.4 mm	0.173 in	Current Source	11 ns	Yes	1 count	Current - Unbuffered	2.7 V	3.6 V	Surface Mount	External Internal	0.12 LSB	0.15 LSB
Analog Devices Inc./Maxim Integrated AD9740ACPRL7			32-LFCSP-VQ					5 mm	5 mm								Surface Mount				32-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9740ACP			32-LFCSP-VQ					5 mm	5 mm								Surface Mount				32-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9740ARZ	-40 °C	85 °C	28-SOIC	10 bits	Parallel	2.7 V	3.6 V	7.5 mm	0.295 in	Current Source	11 ns	Yes	1 count	Current - Unbuffered	2.7 V	3.6 V	Surface Mount	External Internal	0.12 LSB	0.15 LSB
Analog Devices Inc./Maxim Integrated AD9740WARUZRL7	-40 °C	85 °C	28-TSSOP	10 bits	Parallel	2.7 V	3.6 V	4.4 mm	0.173 in	Current Source	11 µs	Yes	1 count	Current - Unbuffered	2.7 V	3.6 V	Surface Mount	External Internal	0.12 LSB	0.15 LSB		Automotive
Analog Devices Inc./Maxim Integrated AD9740ARURL7			28-TSSOP					4.4 mm	0.173 in								Surface Mount
Analog Devices Inc./Maxim Integrated AD9740ACP-PCBZ				10 bits	Parallel																		Board(s)	11 ns	1	Current	Board	210 MHz	AD9740
Analog Devices Inc./Maxim Integrated AD9740ACPZRL7	-40 °C	85 °C	32-LFCSP-VQ	10 bits	Parallel	2.7 V	3.6 V	5 mm	5 mm	Current Source	11 ns	Yes	1 count	Current - Unbuffered	2.7 V	3.6 V	Surface Mount	External Internal	0.12 LSB	0.15 LSB	32-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9740ARUZ	-40 °C	85 °C	28-TSSOP	10 bits	Parallel	2.7 V	3.6 V	4.4 mm	0.173 in	Current Source	11 ns	Yes	1 count	Current - Unbuffered	2.7 V	3.6 V	Surface Mount	External Internal	0.12 LSB	0.15 LSB
