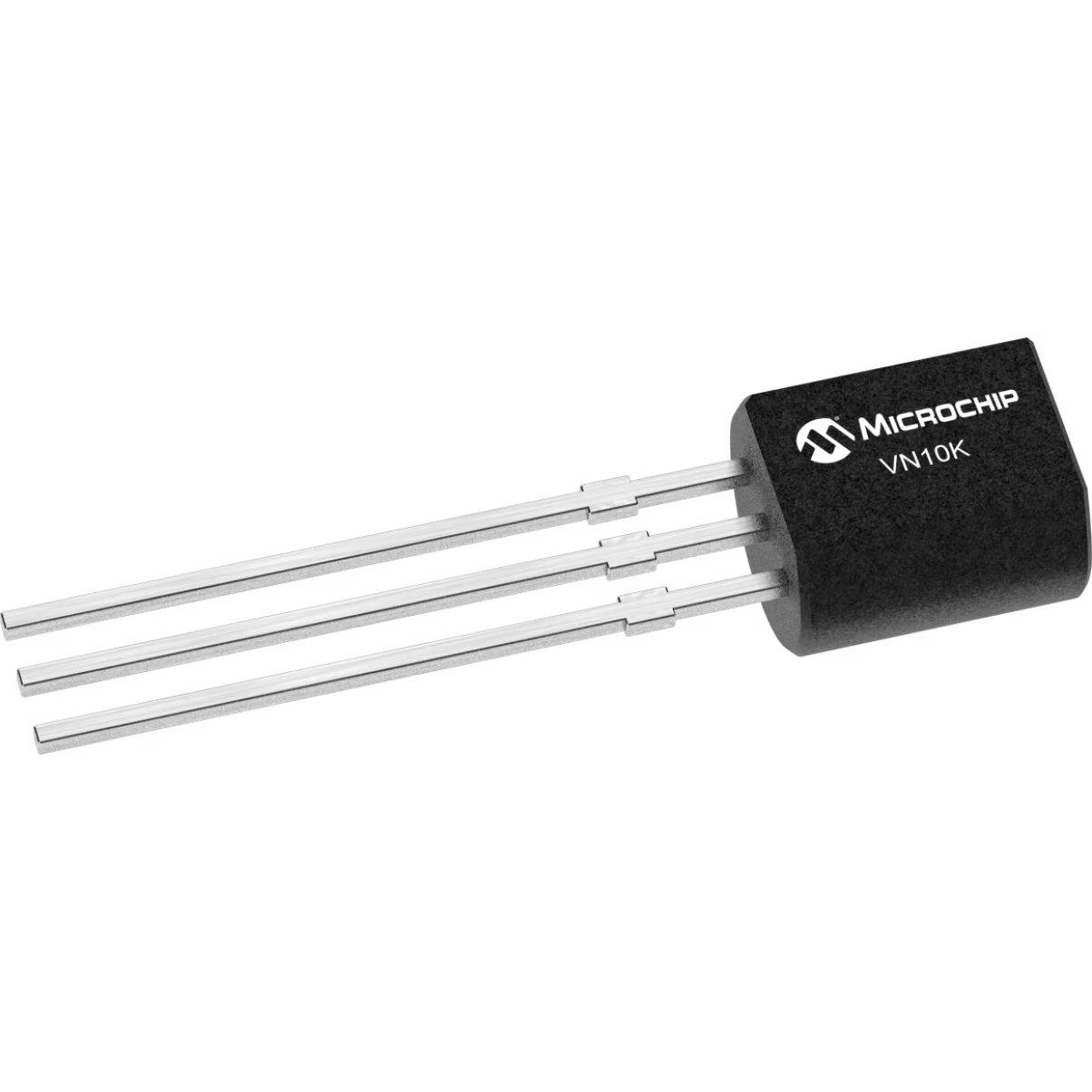

VN10K Series

Catalog

MOSFET, N-CHANNEL ENHANCEMENT-MODE, 60V, 5.0 OHM 3 TO-92 AMMO ROHS COMPLIANT: YES

Part	Vgs (Max)	Package Name	Power Dissipation (Max)	Rds On (Max)	Drive Voltage (Min Rds On)	Drive Voltage (Max Rds On)	FET Type	Drain to Source Voltage (Vdss)	Package / Case	Input Capacitance (Ciss) (Max)	Current - Continuous Drain (Id) (Tj)	Mounting Type	Vgs(th) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Technology
Microchip Technology VN10KN3-G-P014	30 V	TO-92-3	1 W	5 Ohm	10 V	5 V	N-Channel	60 V	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	60 pF	310 mA	Through Hole	2.5 V	-55 °C	150 °C	MOSFET (Metal Oxide)
Microchip Technology VN10KN3-G-P002	30 V	TO-92-3	1 W	5 Ohm	10 V	5 V	N-Channel	60 V	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	60 pF	310 mA	Through Hole	2.5 V	-55 °C	150 °C	MOSFET (Metal Oxide)
Microchip Technology VN10KN3-G	30 V	TO-92-3	1 W	5 Ohm	10 V	5 V	N-Channel	60 V	TO-226-3 TO-92-3 (TO-226AA)	60 pF	310 mA	Through Hole	2.5 V	-55 °C	150 °C	MOSFET (Metal Oxide)
Microchip Technology VN10KN3-G-P013	30 V	TO-92-3	1 W	5 Ohm	10 V	5 V	N-Channel	60 V	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	60 pF	310 mA	Through Hole	2.5 V	-55 °C	150 °C	MOSFET (Metal Oxide)
Microchip Technology VN10KN3-G-P003	30 V	TO-92-3	1 W	5 Ohm	10 V	5 V	N-Channel	60 V	TO-226-3 TO-92-3 (TO-226AA) Formed Leads	60 pF	310 mA	Through Hole	2.5 V	-55 °C	150 °C	MOSFET (Metal Oxide)
