RS Series

Catalog

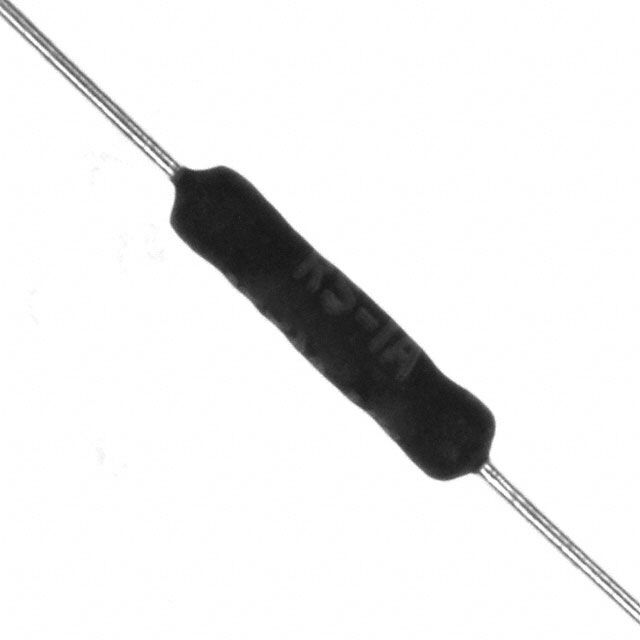

WIREWOUND RESISTORS - THROUGH HOLE RS-1A 250 .05% E70 E3

...

Part	Package Name	Features	Tolerance	Size / Dimension Length	Size / Dimension Diameter	Number of Terminations	Resistance	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Temperature Coefficient	Composition
Vishay Dale RS01A250R0AE70	Axial	Moisture Resistant	0.05 %	0.406 in	0.094 in	2	250 Ohm	Axial	250 °C	-65 °C	1 W	20 ppm/¯C	Wirewound
Vishay Dale RS010R3300FE73	Axial	Moisture Resistant	1 %	1.78 in	0.375 in	2	330 mOhms	Axial	250 °C	-65 °C	10 W		Wirewound
Vishay Dale RS00556K00FS73	Axial	Moisture Resistant	1 %	0.875 in	0.312 in	2	56 kOhm	Axial	250 °C	-65 °C	5 W	20 ppm/¯C	Wirewound
Vishay Dale RS01012R10FE73	Axial	Moisture Resistant	1 %	1.78 in	0.375 in	2	12.1 Ohm	Axial	250 °C	-65 °C	10 W	20 ppm/¯C	Wirewound
Vishay Dale RS01A20R00FS70	Axial	Moisture Resistant	1 %	0.406 in	0.094 in	2	20 Ohm	Axial	250 °C	-65 °C	1 W	20 ppm/¯C	Wirewound
Vishay Dale RS02B8R250FB12	Axial	Moisture Resistant	1 %	0.56 in	0.187 in	2	8.25 Ohms	Axial	250 °C	-65 °C	3 W	50 ppm/°C	Wirewound
Vishay Dale RS0105R000FE73	Axial	Moisture Resistant	1 %	1.78 in	0.375 in	2	5 Ohm	Axial	250 °C	-65 °C	10 W	50 ppm/°C	Wirewound
Vishay Dale RS02B4K990FE12	Axial	Moisture Resistant	1 %	0.56 in	0.187 in	2	4.99 kOhm	Axial	250 °C	-65 °C	3 W	20 ppm/¯C	Wirewound
Vishay Dale RS01A100R0FE12	Axial	Moisture Resistant	1 %	0.406 in	0.094 in	2	100 Ohms	Axial	250 °C	-65 °C	1 W	20 ppm/¯C	Wirewound
Vishay Dale RS0101K000FE12	Axial	Moisture Resistant	1 %	1.78 in	0.375 in	2	1 kOhm	Axial	250 °C	-65 °C	10 W	20 ppm/¯C	Wirewound
