MGDT Series

Catalog

PULSE TRANSFORMERS PLANAR 1:1.25:1.25 HIGH SIDE / 1200V

Part	Inductance	Mounting Type	Transformer Type	Turns Ratio - Secondary (Tap 1)	Turns Ratio - Primary	Turns Ratio - Secondary (Tap 2)	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Turns Ratio - Primary:Secondary
Vishay Dale MGDT100125	240 µH	Through Hole	Gate Drive	1.25	1	1.25	125 °C	-55 °C	0.725 in	0.81 in	0.45 in

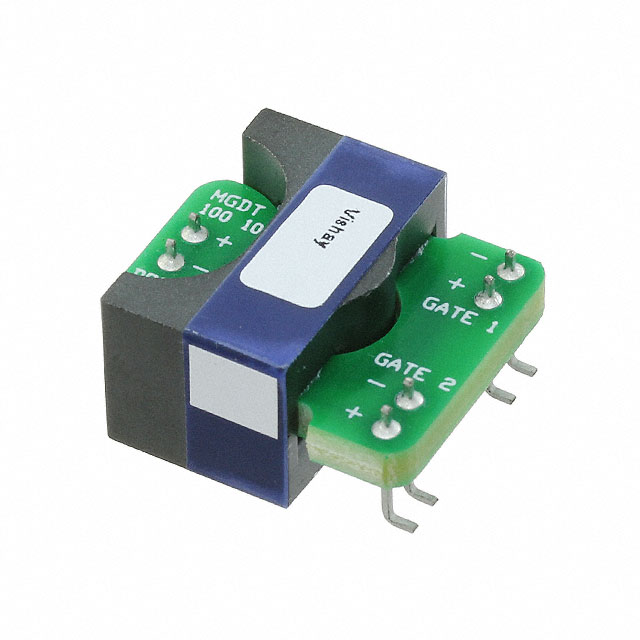

Vishay Dale MGDT100100-SM	240 µH	Surface Mount	Gate Drive				125 °C	-55 °C	0.725 in	0.81 in	0.45 in	1:1:1
