74CBTLV3257 Series

Low-Voltage Quad 2:1 Mux/Demux Bus Switch

Manufacturer: Renesas Electronics Corporation

Catalog

Low-Voltage Quad 2:1 Mux/Demux Bus Switch

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Circuit	Mounting Type	Voltage Supply Source	Independent Circuits	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Type	Package Length	Package Width
Renesas Electronics Corporation 74CBTLV3257PGG	3.6 V	2.3 V	4 x 1:2	Surface Mount	Single Supply	4	85 °C	-40 °C	16-TSSOP	Multiplexer/Demultiplexer	0.173 in	4.4 mm
Renesas Electronics Corporation 74CBTLV3257QG	3.6 V	2.3 V	4 x 1:2	Surface Mount	Single Supply	4	85 °C	-40 °C	16-QSOP 16-SSOP	Multiplexer/Demultiplexer	0.154 in	3.9 mm
Renesas Electronics Corporation 74CBTLV3257PGG8	3.6 V	2.3 V	4 x 1:2	Surface Mount	Single Supply	4	85 °C	-40 °C	16-TSSOP	Multiplexer/Demultiplexer	0.173 in	4.4 mm
Renesas Electronics Corporation 74CBTLV3257QG8	3.6 V	2.3 V	4 x 1:2	Surface Mount	Single Supply	4	85 °C	-40 °C	16-QSOP 16-SSOP	Multiplexer/Demultiplexer	0.154 in	3.9 mm

Catalog

Low-Voltage Quad 2:1 Mux/Demux Bus Switch

Description

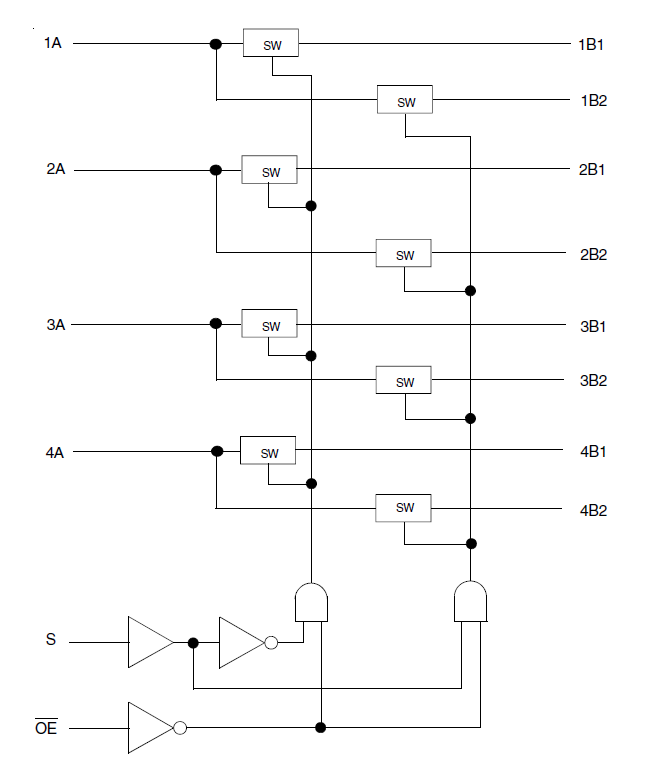

The 74CBTLV3257 is a quad 2:1 multiplexer/demultiplexer. The select (S) input controls the data flow. The multiplexers/demultiplexers are enabled when the Output Enable (OE) input is low. The 74CBTLV3257 operates at -40 °C to +85 °C.
