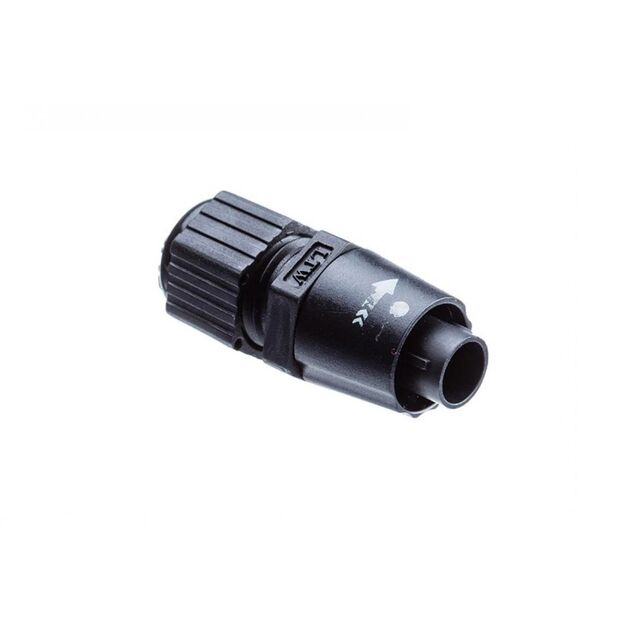

PLD-02 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CERES, OTHERS (PLD), 5A, 02 PINS
| Part | Insert Material | Contact Material | Shielding | Fastening Type | Voltage Rating | Termination | Shell Material | Ingress Protection Description | Ingress Protection IP Rating | Mounting Type | Shell Size - Insert | Current Rating | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Mating | Color | Mounting Feature | Number of Positions | Primary Material | Connector Type | Orientation | Cable Opening (Min) | Cable Opening (Max) | Voltage Rating (Type) | Backshell Material, Plating | Features | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Glass Filled Nylon PA Polyamide | Copper Alloy | Unshielded | Threaded | 250 V | Solder Cup | Glass Filled Nylon Polyamide (PA) | Dust Tight Waterproof | IP67 | Panel Mount | PL | 5 A | -40 °C | 105 °C | Gold | Black | Bulkhead Front Side Nut | 2 | Plastic | Female Sockets Receptacle | Keyed | ||||||
 McGill Microwave Systems | Nylon PA Polyamide | Copper Alloy | Unshielded | Bayonet Lock | 250 V | Solder Cup | Nickel | Dust Tight Waterproof | IP67 | Free Hanging (In-Line) | PL | 5 A | -40 °C | 105 °C | Gold | Black | 2 | Metal | Male Pins Plug | Keyed | 0.177 in | 0.256 in | DC | Glass Filled Nylon Polyamide (PA) | Backshell Coupling Nut | UL94 V-0 |
