3008W8P Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

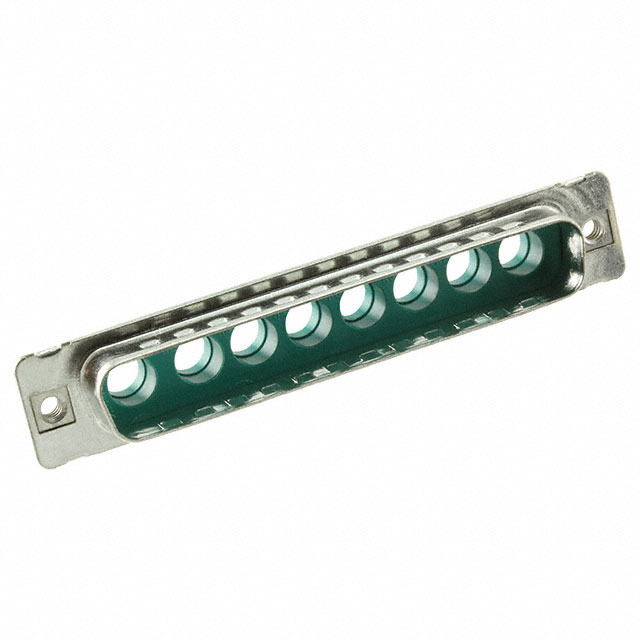

CONN PLUG 8W8 M
| Part | Connector Type | Shell Size | Connector Layout | Part Code | Mating Cycles | Dielectric Material | Color | Connector Style | Number of Rows | Features | Shell Finish Thickness | Flange Feature | Finish | Shell Material | Mounting Type | Number of Positions | Position Types | Contact Type | Ingress Protection | Operating Temperature (Max) | Operating Temperature (Min) | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Plug for Male Contacts | 4 | C DC | 8W8 | ||||||||||||||||||
McGill Microwave Systems | Plug for Male Contacts | 4 | C DC | 8W8 | 500 cycles | Glass Filled Polybutylene Terephthalate (PBT) | Green | Combo D-Sub | 1 | Grounding Indents | 315 µin | Board Side (4-40) | Tin-Nickel Plated | Steel | Through Hole | 8 | Power | Power | IP20 | |||
McGill Microwave Systems | Male Pins Plug | |||||||||||||||||||||
 McGill Microwave Systems | Plug for Male Contacts | 4 | C DC | 8W8 | Glass Filled Polybutylene Terephthalate (PBT) | Green | Combo D-Sub | 1 | Grounding Indents | 315 µin | Housing Shell (Unthreaded) | Tin Plated | Steel | Free Hanging (In-Line) | 8 | Coax Power | Coax Coax or Power Power | 125 °C | -55 °C | Contacts Not Included | ||
McGill Microwave Systems | Male Pins Plug | |||||||||||||||||||||
McGill Microwave Systems | Male Pins Plug | |||||||||||||||||||||
 McGill Microwave Systems | Plug for Male Contacts | 4 | C DC | 8W8 | Glass Filled Polybutylene Terephthalate (PBT) | Green | Combo D-Sub | 1 | Grounding Indents | 315 µin | Mating Side (4-40) | Tin Plated | Steel | Free Hanging (In-Line) | 8 | Coax Power | Coax Coax or Power Power | 125 °C | -55 °C | Contacts Not Included | ||
McGill Microwave Systems | Plug for Male Contacts | 4 | C DC | 8W8 | 500 cycles | Glass Filled Polybutylene Terephthalate (PBT) | Green | Combo D-Sub | 1 | Grounding Indents | Housing Shell (4-40) | Tin Plated | Steel | Through Hole | 8 | Power | Power | IP20 | ||||
McGill Microwave Systems | Plug for Male Contacts | 4 | C DC | 8W8 | 500 cycles | Glass Filled Polybutylene Terephthalate (PBT) | Green | Combo D-Sub | 1 | Grounding Indents | 315 µin | Housing Shell (4-40) | Tin-Nickel Plated | Steel | Through Hole | 8 | Power | Power | IP20 |
