ADM7172 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

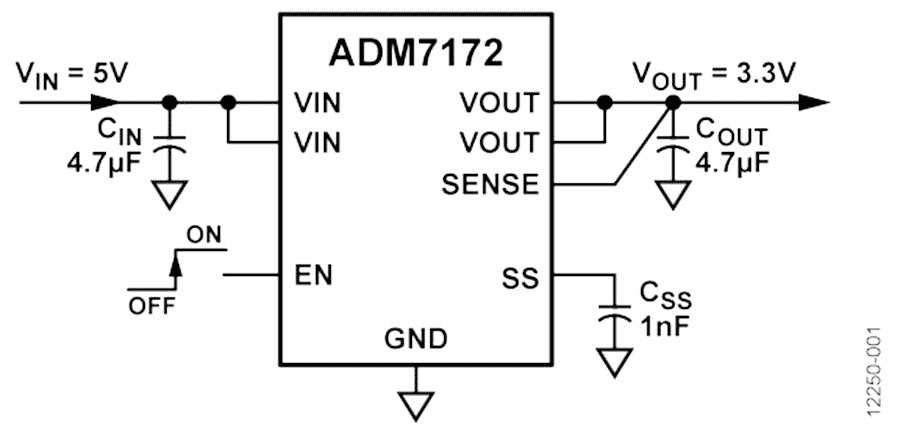

6.5 V, 2 A, ULTRALOW NOISE, HIGH PSRR, FAST TRANSIENT RESPONSE CMOS LDO

Part	Voltage Dropout (Max)	Voltage - Output (Min/Fixed)	Protection Features	Output Configuration	Package / Case	Current - Quiescent (Iq)	PSRR (Minimum)	PSRR (Maximum)	Package Length	Package Name	Package Width	Number of Regulators	Current - Output	Voltage - Input (Max)	Control Features	Output Type	Voltage - Output (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Current - Supply (Max)
Analog Devices Inc./Maxim Integrated ADM7172ACPZ-R7	0.27 V	1.2 V	Over Current Over Temperature	Positive	8-WFDFN Exposed Pad CSP	2 mA	20 dB	60 dB	3 mm	8-LFCSP-WD	3 mm	1	2 A	6.5 V	Enable Soft Start	Adjustable	6.23 V	125 °C	-40 °C	Surface Mount	8.7 mA
Analog Devices Inc./Maxim Integrated ADM7172ACPZ-2.5-R7		2.5 V	Over Current Over Temperature	Positive	8-WFDFN Exposed Pad CSP	2 mA			3 mm	8-LFCSP-WD	3 mm	1	2 A	6.5 V	Enable Soft Start	Fixed		125 °C	-40 °C	Surface Mount	8.7 mA
Analog Devices Inc./Maxim Integrated ADM7172ACPZ-4.2-R7		4.2 V	Over Current Over Temperature	Positive	8-WFDFN Exposed Pad CSP	2 mA			3 mm	8-LFCSP-WD	3 mm	1	2 A	6.5 V	Enable Soft Start	Fixed		125 °C	-40 °C	Surface Mount	8.7 mA
Analog Devices Inc./Maxim Integrated ADM7172ACPZ-3.3-R7		3.3 V	Over Current Over Temperature	Positive	8-WFDFN Exposed Pad CSP	2 mA			3 mm	8-LFCSP-WD	3 mm	1	2 A	6.5 V	Enable Soft Start	Fixed		125 °C	-40 °C	Surface Mount	8.7 mA
Analog Devices Inc./Maxim Integrated ADM7172ACPZ-1.3-R7		1.3 V	Over Current Over Temperature	Positive	8-WFDFN Exposed Pad CSP	2 mA			3 mm	8-LFCSP-WD	3 mm	1	2 A	6.5 V	Enable Soft Start	Fixed		125 °C	-40 °C	Surface Mount	8.7 mA
Analog Devices Inc./Maxim Integrated ADM7172ACPZ-3.0-R7	0.27 V	3 V	Over Current Over Temperature	Positive	8-WFDFN Exposed Pad CSP	2 mA	20 dB	60 dB	3 mm	8-LFCSP-WD	3 mm	1	2 A	6.5 V	Enable Soft Start	Fixed		125 °C	-40 °C	Surface Mount	8.7 mA
Analog Devices Inc./Maxim Integrated ADM7172ACPZ-5.0-R7		5 V	Over Current Over Temperature	Positive	8-WFDFN Exposed Pad CSP	2 mA			3 mm	8-LFCSP-WD	3 mm	1	2 A	6.5 V	Enable Soft Start	Fixed		125 °C	-40 °C	Surface Mount	8.7 mA
Analog Devices Inc./Maxim Integrated ADM7172ACPZ-1.8-R7		1.8 V	Over Current Over Temperature	Positive	8-WFDFN Exposed Pad CSP	2 mA			3 mm	8-LFCSP-WD	3 mm	1	2 A	6.5 V	Enable Soft Start	Fixed		125 °C	-40 °C	Surface Mount	8.7 mA
