ADGS1612 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
EVALUATION BOARD I.C.
| Part | Supplied Contents | Type | Function | Utilized IC / Part | Primary Attributes | Contents | Mounting Type | Crosstalk | Package / Case | Channel Capacitance (CD(off)) | Channel Capacitance (CS(off)) | Operating Temperature (Max) | Operating Temperature (Min) | Demultiplexer Outputs | Multiplexer Inputs | Switch Circuit Type | Switch Contact | Voltage - Supply, Dual (Nominal) | Voltage - Supply, Dual (Minimum) | Voltage - Supply, Dual (Maximum) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) (Maximum) | Voltage - Supply, Single (V+) (Minimum) | Number of Circuits | On-State Resistance (Max) | Current - Leakage (Max) | -3db Bandwidth | Charge Injection | Package Width | Package Name | Package Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

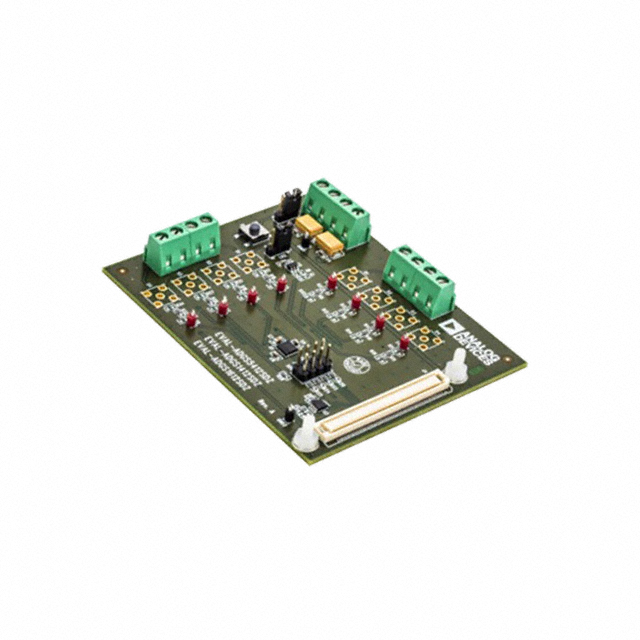

 Analog Devices Inc./Maxim Integrated | Board(s) | Interface | Analog Switch | ADGS1612 | SPST | Board | |||||||||||||||||||||||||
 Analog Devices Inc./Maxim Integrated | Surface Mount | -110 dB | 24-VFQFN Exposed Pad CSP | 63 pF | 63 pF | 125 °C | -40 °C | 1 | 1 | SPST | NO | 3.3 V | -3.3 V | 8 V | 40 mOhm | 16 V | 3.3 V | 4 | 1 Ohms | 100 pA | 42 MHz | 140 pC | 4 mm | 24-LFCSP | 4 mm | ||||||
Analog Devices Inc./Maxim Integrated | Surface Mount | -110 dB | 24-VFQFN Exposed Pad CSP | 63 pF | 63 pF | 125 °C | -40 °C | 1 | 1 | SPST | NO | 3.3 V | -3.3 V | 8 V | 40 mOhm | 16 V | 3.3 V | 4 | 1 Ohms | 100 pA | 42 MHz | 140 pC | 4 mm | 24-LFCSP | 4 mm |
