KD23 Series

Catalog

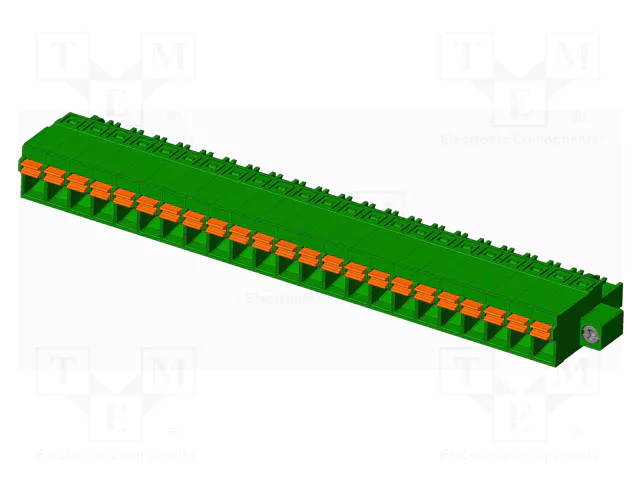

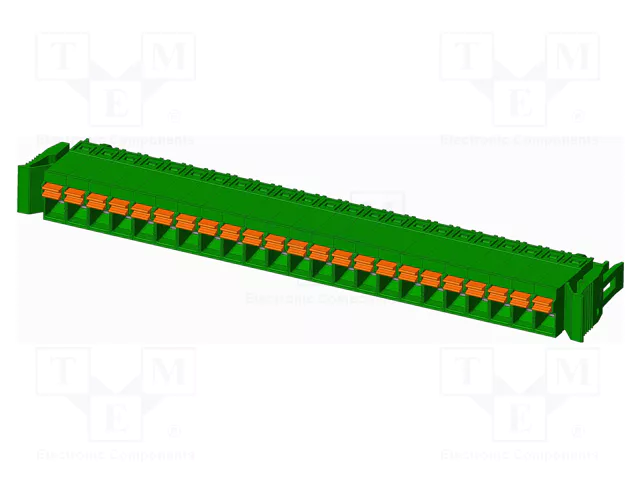

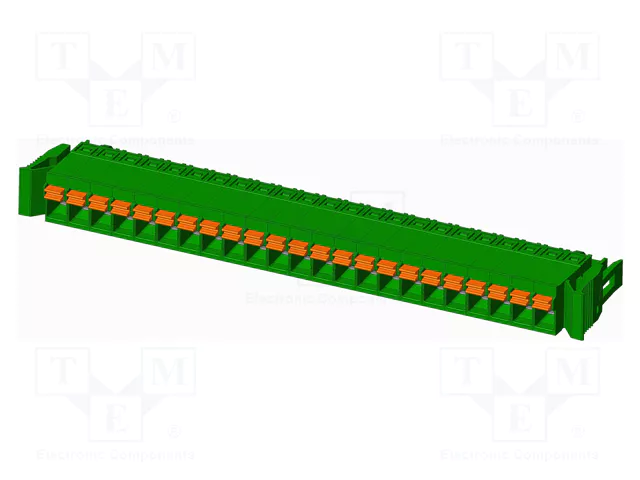

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 5.5A; 300V

Part	Features	Operating Temperature (Min)	Operating Temperature (Max)	Number of Levels	Voltage - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Termination Style	Type	Color	Current - UL	Contact Mating Finish	Mounting Type	Positions Per Level	Pitch	Plug Wire Entry Angle	Number of Positions	Material Flammability Rating	Contact Material	Insulation Height	Housing Material	Wire Strip Length (Min)	Wire Strip Length (Max)
McGill Microwave Systems KD2330520000G	Latch Lock	-40 °C	115 °C	1	300 V	24 AWG	16 AWG	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	Green	5.5 A	Tin	Free Hanging (In-Line)	23	0.15 in	180 °	23	UL94 V-0	Phosphor Bronze	0.307 in	Thermoplastic	9 mm	10 mm
McGill Microwave Systems KD2350510000G	Mating Flange Retention Latches (Wire Side)	-40 °C	115 °C	1	300 V	24 AWG	14 AWG	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	Green	12 A	Tin	Free Hanging (In-Line)	23	5.08 mm	180 °	23	UL94 V-0	Phosphor Bronze	0.429 in	Thermoplastic	11 mm	12 mm
McGill Microwave Systems KD2370520000G	Latch Lock Retention Latches (Wire Side)	-40 °C	115 °C	1	300 V	24 AWG	14 AWG	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	Green	12 A	Tin	Free Hanging (In-Line)	23	0.197 in	180 °	23	UL94 V-0	Phosphor Bronze	0.429 in	Thermoplastic	11 mm	12 mm
McGill Microwave Systems KD2310520000G	Latch Lock	-40 °C	115 °C	1	160 V	24 AWG	16 AWG	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	Green	5.5 A	Tin	Free Hanging (In-Line)	23	0.138 in	180 °	23	UL94 V-0	Phosphor Bronze	0.307 in	Thermoplastic	9 mm	10 mm
McGill Microwave Systems KD2350500000G	Retention Latches (Non-Wire Side)	-40 °C	115 °C	1	300 V	24 AWG	14 AWG	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	Green	12 A	Tin	Free Hanging (In-Line)	23	5.08 mm	180 °	23	UL94 V-0	Phosphor Bronze	0.429 in	Thermoplastic	11 mm	12 mm
McGill Microwave Systems KD2350520000G	Latch Lock	-40 °C	115 °C	1	300 V	24 AWG	14 AWG	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	Green	12 A	Tin	Free Hanging (In-Line)	23	5.08 mm	180 °	23	UL94 V-0	Phosphor Bronze	0.429 in	Thermoplastic	11 mm	12 mm
McGill Microwave Systems KD2330500000G		-40 °C	115 °C	1	300 V	24 AWG	16 AWG	Push-In Spring Screwless - Leg Spring	Female Sockets Plug	Green	5.5 A	Tin	Free Hanging (In-Line)	23	0.15 in	180 °	23	UL94 V-0	Phosphor Bronze	0.307 in	Thermoplastic	9 mm	10 mm
