41-4002 Series

Catalog

CIRC CBL 3POS RCPT TO WIRE 1.64'

Part	Length	Cable Material	1st Connector Orientation	1st Connector Gender	1st Connector Shell Size - Insert (Size)	1st Connector Type	1st Connector Number of Positions (Signal)	1st Connector Position Types	1st Connector Number of Positions	2nd Connector Type	Usage	Shielding	1st Connector Number of Positions Loaded	Ingress Protection Description	Ingress Protection IP Rating	Cable Type	1st Connector Mounting Type	Assembly Configuration	Color	Current Rating	Mounting Feature	Orientation	Contact Material	Shell Finish	Applications	Termination	Voltage Rating	Contact Finish - Mating	Insert Material	Primary Material	Mounting Type	Shell Material	Material Flammability Rating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Fastening Type	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type
McGill Microwave Systems 41-40024	1.64 ft	Polyvinyl Chloride (PVC)	Keyed	Male Pins	0.875 in	Receptacle	2 positions	PE	3 positions	Wire Leads	Industrial Environments	Unshielded	All	Dust Tight Waterproof	IP67	Individual	Panel Mount	Standard	Multiple

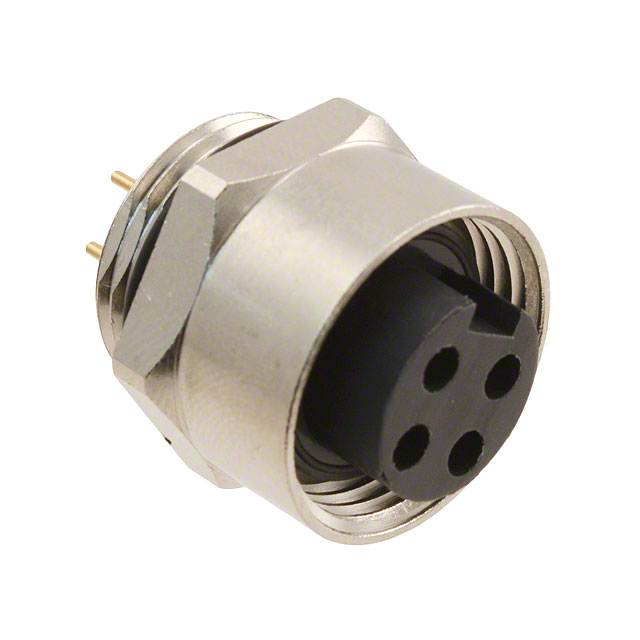

McGill Microwave Systems 41-40022												Unshielded		Dust Tight Waterproof	IP67				Silver	12 A	Bulkhead Rear Side Nut	Keyed	Copper Zinc	Nickel	Automotive Industrial	Solder	300 VAC/DC	Gold	Thermoplastic Polyurethane TPU	Metal	Panel Mount Through Hole	Copper Zinc	UL94	4 S	0.875	Threaded	4	-30 °C	75 °C	Female Sockets Plug
McGill Microwave Systems 41-40025	1.64 ft	Polyvinyl Chloride (PVC)	Keyed	Male Pins	0.875 in	Receptacle			4 positions	Wire Leads	Industrial Environments	Unshielded	All	Dust Tight Waterproof	IP67	Individual	Panel Mount	Standard	Multiple
