61018 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

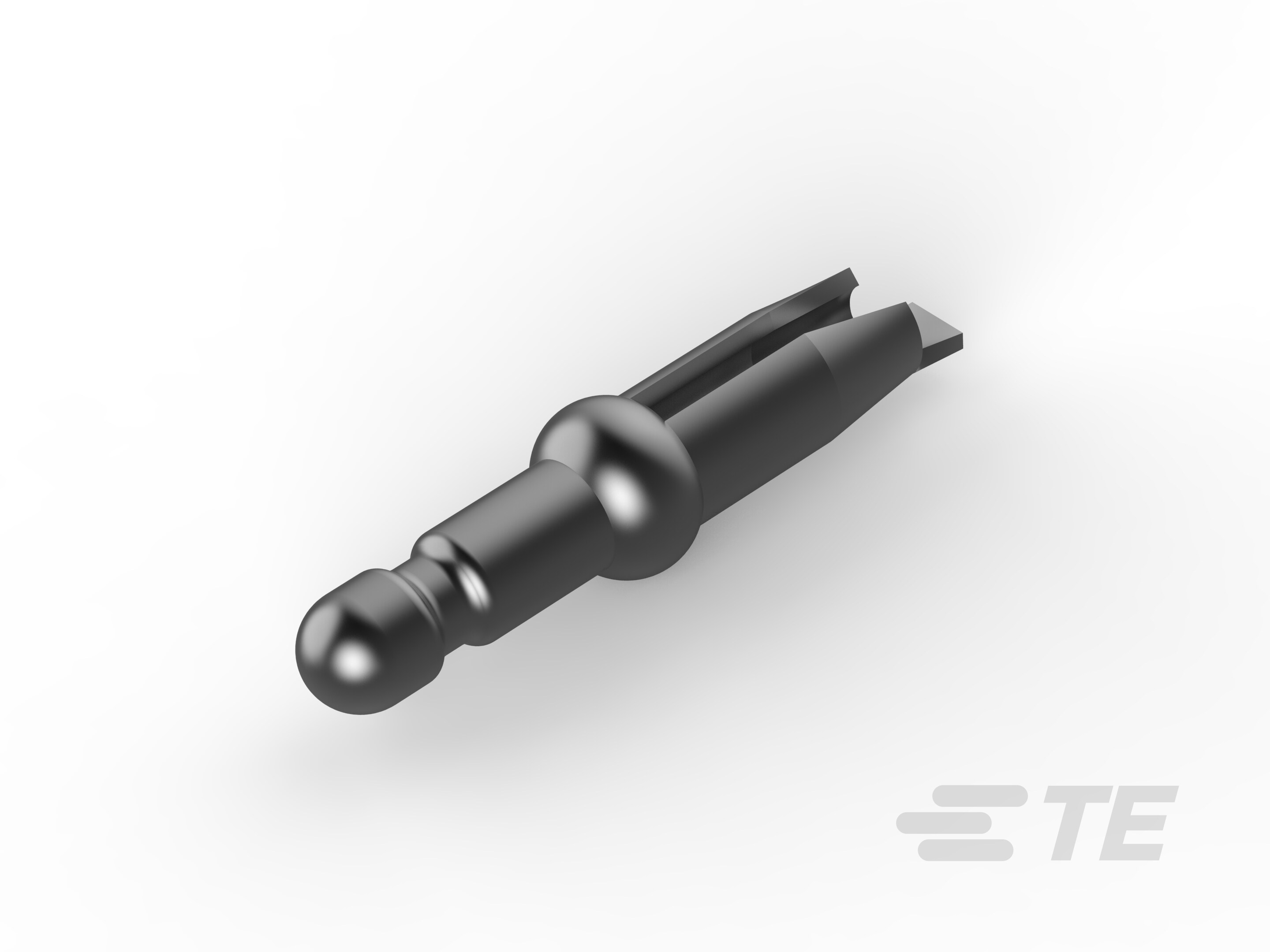

CONN PC PIN CIRC 0.058DIA TIN
| Part | Length - Below Flange | Terminal Type | Length - Overall | Mounting Type | Length - Above Flange | Mounting Hole Diameter (Max) | Mounting Hole Diameter (Min) | Contact Material | Termination | Contact Finish | Flange Diameter | Board Thickness (Min) | Board Thickness (Max) | Terminal Style | Insulation | Pin Size - Above Flange (Diameter) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.15 in | Single Post | 0.38 in | Through Hole | 0.16 in | 0.07 in | 0.066 in | Phosphor Bronze | Press-Fit | Tin | 0.09 in | 0.062 in | 0.093 in | Flanged | Non-Insulated | 0.058 in |
