MB5RJN Series

Catalog

M23, HYBRID, MALE RECEPTACLE, 90 DEG, 15 POS (5+6+4), FLANGE MOUNT, CHECKMATE READY. /BOX ROHS COMPLIANT: YES

Part	Shielding	Shell Size - Insert	Number of Positions Breakdown	Number of Positions (Power)	Number of Positions	Number of Positions (Total)	Number of Positions (Quadrax)	Contact Shape	Material Flammability Rating	Note	Features	Contact Size Options	Contact Size	Contact Size (Power)	Connector Type	Fastening Type	Contact Type	Ingress Protection Description	Ingress Protection IP Rating	Mounting Feature	Shell Material	Insert Material	Orientation	Shell Finish	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Housing Color	Type	Primary Material	Contact Finish - Mating	Color	Voltage Rating	Voltage Rating (Type)	Current Rating Options	Termination	Number of Positions (Normal)	Position Types	Current Rating

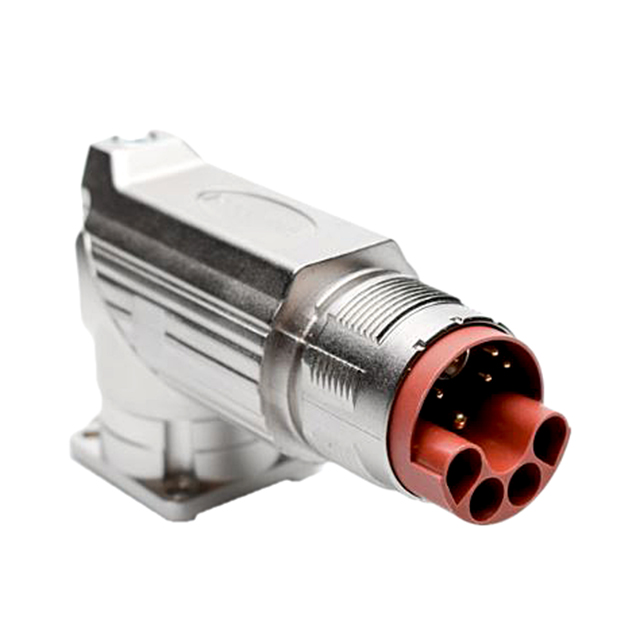

McGill Microwave Systems MB5RJN15H01	Shielded	M23-12	1 Quadrax 4 Power 6 PE	4	12	12	1	Circular	UL94 V-0	Contacts Not Included	Backshell	Quadrax	0.6 mm 1 mm	2 mm	Receptacle Housing	Push-Twist	Crimp	Dust Tight Waterproof	IP67	Flange	Zinc Die Cast	Nylon 6/6 PA66 Polyamide	Keyed	Nickel	Panel Mount Right Angle	-20 °C	130 °C	Silver	For Male Pins
McGill Microwave Systems MB5RJN0801-KIT		M23-8		4		8					Backshell Rotatable				Male Pins Receptacle	Threaded		Dust Tight Waterproof	IP67	Flange	Zinc Die Cast		N (Normal)	Nickel	Panel Mount Right Angle	-20 °C	130 °C			Metal	Gold	Silver	250 V	DC	10A 30A	Crimp	4

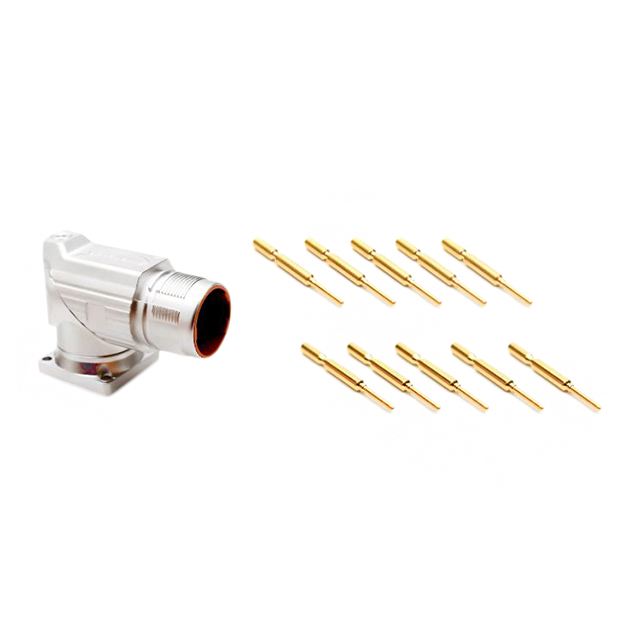

McGill Microwave Systems MB5RJN0902-KIT		M23-9		4		9					Backshell Rotatable				Male Pins Receptacle	Threaded		Dust Tight Waterproof	IP67	Flange	Zinc Die Cast		N (Normal)	Nickel	Panel Mount Right Angle	-20 °C	130 °C			Metal	Gold	Silver	250 V	DC	10A 30A	Crimp	5
McGill Microwave Systems MB5RJN0601-KIT		M23-6			6						Backshell Rotatable				Male Pins Receptacle	Threaded		Dust Tight Waterproof	IP67	Flange	Zinc Die Cast		N (Normal)	Nickel	Panel Mount Right Angle	-20 °C	130 °C			Metal	Gold	Silver	630 V			Crimp		Power	28 A
McGill Microwave Systems MB5RJN0801	Shielded	M23-8			8			Circular	UL94 V-0	Contacts Not Included	Backshell Rotatable		1 mm	2 mm	Receptacle Housing	Push-Twist	Crimp	Dust Tight Waterproof	IP67	Flange	Zinc Die Cast	Nylon 6/6 PA66 Polyamide	Keyed	Nickel	Panel Mount Right Angle	-20 °C	130 °C	Silver	For Male Pins									PE Power
McGill Microwave Systems MB5RJN0602-KIT		M23-6			6						Backshell Rotatable				Male Pins Receptacle	Threaded		Dust Tight Waterproof	IP67	Flange	Zinc Die Cast		N (Normal)	Nickel	Panel Mount Right Angle	-20 °C	130 °C			Metal	Gold	Silver	630 V			Crimp		Power	28 A
