SMPM Series

Catalog

SMPM MALE SOLDER-IN HERMETIC CONNECTOR (.012"), SB" /INDIVIDUAL - GEL PACK GRID (PACK FILL QTY: 64)

Part	Body Finish	Body Material	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Impedance	Connector Type	Housing Color	Center Contact Material	Features	Mounting Type	Number of Ports	Frequency - Max	Fastening Type	Shield Termination	Connector Style	Contact Termination	Dielectric Material	Mating Cycles	Cable Group Diameter (Default)	Cable Group	Convert From (Adapter End)	Center Gender	Style	Adapter Type	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Conversion Type	Adapter Series	Insertion Loss	Cable Type Size	Cable Type	Cable Diameter	Cable Outer Diameter	2nd Connector Mounting Type	2nd Connector Mounting Feature	2nd Connector	1st Contact Gender	2nd Contact Gender	Overall Impedance	Length	1st Connector	1st Connector Mounting Type	Color	Cable Group Size
McGill Microwave Systems 3211-60028	Gold	Cobalt Iron Nickel	165 °C	-55 °C	Gold	50 Ohm	Male Pin Plug	Gold	Cobalt Iron Nickel	Smooth Bore	Free Hanging (In-Line)	1	65 GHz	Snap-On	Solder	SMPM	Solder
McGill Microwave Systems 925-201J-51S		Stainless Steel	165 °C	-65 °C	Gold	50 Ohm	Jack Male Pin	Silver	Beryllium Copper	Extended Insulation Smooth Bore	Panel Mount Threaded	1	40 Gbps	Snap-On	Solder	SMPM	Solder	Polytetrafluoroethylene (PTFE)	100 cycles
McGill Microwave Systems 925-NM196J-51P						50 Ohm	Jack Male Pin	Gold	Beryllium Copper	Full Detent	Surface Mount	1	18 GHz	Snap-On	Solder	SMPM	Solder

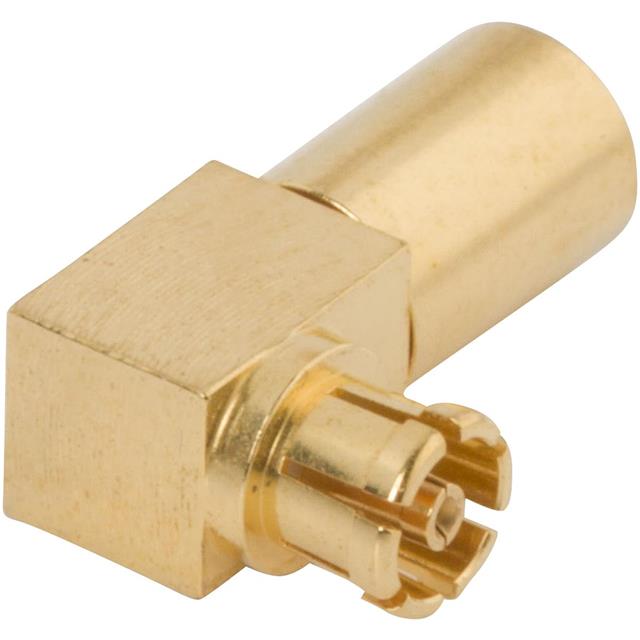

McGill Microwave Systems 3222-40005	Gold	Beryllium Copper			Gold	50 Ohm	Female Socket Jack	Gold	Brass		Free Hanging (In-Line) Right Angle	1	40 Gbps	Snap-On		SMPM	Solder	Polytetrafluoroethylene (PTFE)		0.085 in	RG-405
McGill Microwave Systems 3211-40141	Gold	Beryllium Copper	125 °C	-55 °C	Gold	50 Ohm	Male Pin Plug	Gold	Beryllium Copper	Full Detent	Through Hole	1	40 Gbps	Snap-On	Solder	SMPM	Solder	Polytetrafluoroethylene (PTFE)	100 cycles
McGill Microwave Systems 1132-4006	Gold	Beryllium Copper			Gold	50 Ohm			Beryllium Copper		Free Hanging (In-Line)		40 Gbps	Snap-On				Polytetrafluoroethylene (PTFE)				Female Socket SMPM Jack	Female	Straight	Jack to Jack	Female Socket	SMPM Jack	Same Series	SMPM to SMPM	0.5 dB

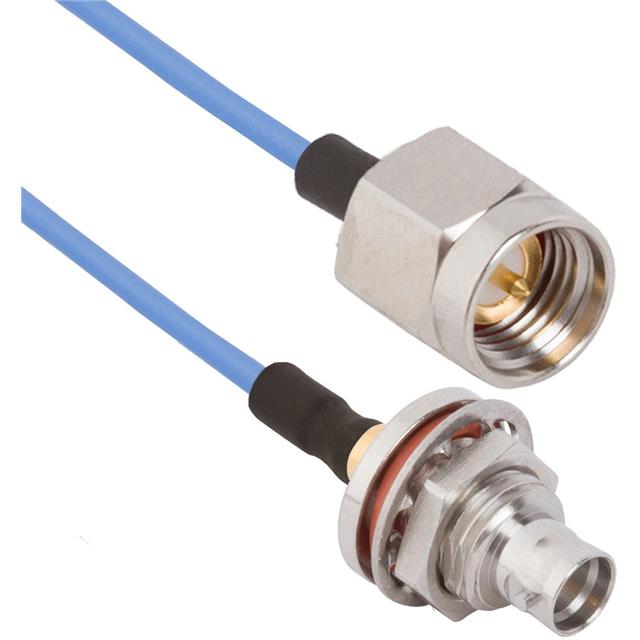

McGill Microwave Systems 7032-9469			165 °C	-65 °C									26.5 GHz											SMA SMPM							0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Panel Mount	Bulkhead Rear Side Nut	SMPM Jack	Male	Female	50 Ohms	12 in	SMA Plug	Free Hanging (In-Line)	Blue
McGill Microwave Systems 925-126J-51P	Gold	Brass	165 °C	-65 °C	Gold	50 Ohm	Jack Male Pin	Gold	Beryllium Copper	Full Detent	Board Edge Cutout Surface Mount	1	40 Gbps	Snap-On	Solder	SMPM	Solder	Polytetrafluoroethylene (PTFE)	100 cycles
McGill Microwave Systems 925-124P-51S						50 Ohm	Female Socket Plug	Gold	Beryllium Copper		Free Hanging (In-Line)	1	35 GHz	Snap-On	Solder	SMPM	Solder				Semi Rigid																								0.047 "
McGill Microwave Systems 3211-60180-TD						50 Ohm	Male Pin Plug	Gold	Beryllium Copper	Catcher's Mitt	Board Edge End Launch Right Angle Through Hole	8	65 GHz	Snap-On	Solder	SMPM	Solder
