ACPS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
PHONE AUDIO CONNECTOR, STEREO, 3 CONTACTS, PLUG, 6.35 MM, CABLE MOUNT, GOLD PLATED CONTACTS
| Part | Actual Diameter | Connector Type | Shielding | Number of Contacts | Number of Conductors | Gender | Termination | Mounting Type | Signal Lines | Internal Switch(s) | Industry Recognized Mating Diameter (Headphone) | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating | Contact Material | Contact Material - Plating | Body Color | Includes Total Count | Includes | Housing Material | Mating Length/Depth | Cable Opening (Min) | Cable Opening (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

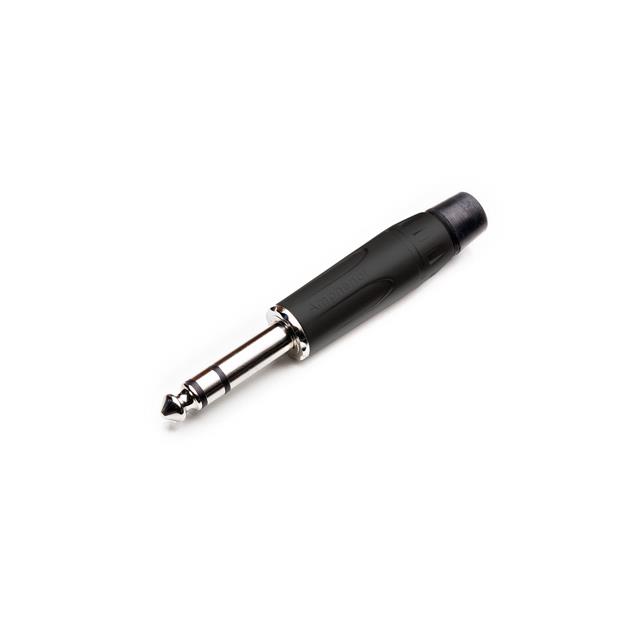

 McGill Microwave Systems | 0.249 in | Phone Plug | Shielded | 3 Contacts | 3 Conductors | Male | Solder Eyelet(s) | Free Hanging (In-Line) | 3 Conductor Stereo TRS | Does Not Contain Switch | 6.35 mm | -25 °C | 75 °C | 10 A | Brass | Gold | Black Gold | 3 pcs | Connector Handle Insulator Tube | Zinc Alloy | 1.2 in | ||

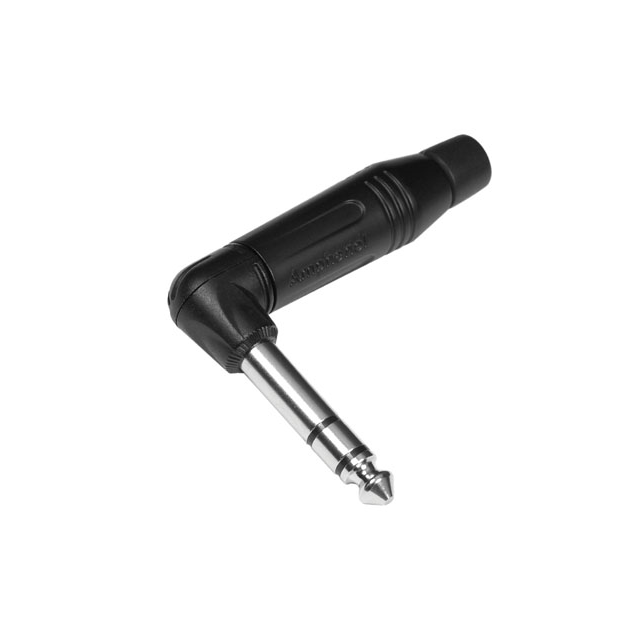

 McGill Microwave Systems | 0.249 in | Phone Plug | Unshielded | 3 Contacts | 3 Conductors | Male | Solder Eyelet(s) | Free Hanging (In-Line) Right Angle | 3 Conductor Stereo TRS | Does Not Contain Switch | 6.35 mm | -25 °C | 70 °C | 10 A | Brass | Nickel | Black Silver | Zinc Die Cast | 1.205 in | 0.118 in | 0.256 in | ||
 McGill Microwave Systems | 0.249 in | Phone Plug | Unshielded | 3 Contacts | 3 Conductors | Male | Solder Eyelet(s) | Free Hanging (In-Line) | 3 Conductor Stereo TRS | Does Not Contain Switch | 6.35 mm | -25 °C | 70 °C | 10 A | Brass | Nickel | Black Silver | Zinc Alloy | 1.19 in | ||||
 McGill Microwave Systems | 0.249 in | Phone Plug | Unshielded | 3 Contacts | 3 Conductors | Male | Solder Eyelet(s) | Free Hanging (In-Line) | 3 Conductor Stereo TRS | Does Not Contain Switch | 6.35 mm | -25 °C | 75 °C | 10 A | Brass | Nickel | Black Silver | 3 pcs | Connector Handle Insulator Tube | Zinc Alloy | 1.2 in |
