IXBT32 Series

Catalog

IGBT 3000V 80A TO-268AA

Part	Reverse Recovery Time (trr)	Input Type	Voltage - Collector Emitter Breakdown (Max)	Gate Charge	Vce(on) (Max)	Current - Collector Pulsed (Icm)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Power - Max	Package Name	Current - Collector (Ic) (Max)	Package / Case	Test Condition Voltage (Secondary)	Test Condition Resistance	Test Condition Voltage	Test Condition Current	Td (on) @ 25°C	Td (off) @ 25°C

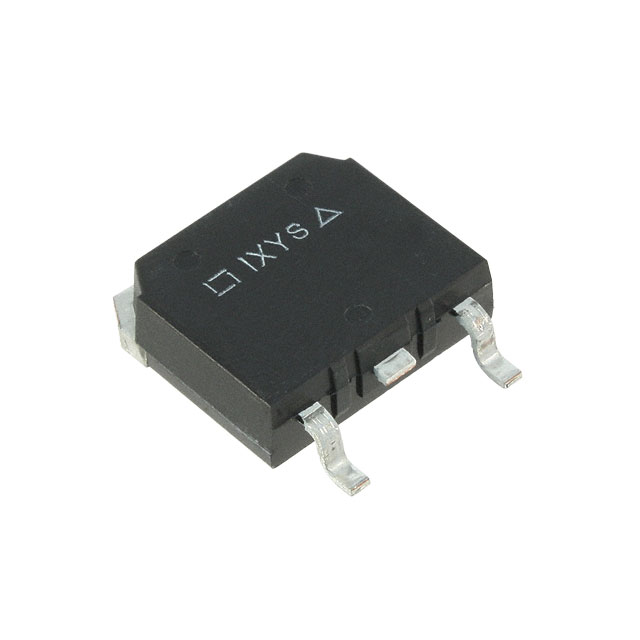

LITTELFUSE IXBT32N300	1500 ns	Standard	3000 V	142 nC	3.2 V	280 A	-55 °C	150 °C	Surface Mount	400 VA	TO-268AA	80 A	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA
LITTELFUSE IXBT32N300HV	1500 ns	Standard	3000 V	142 nC	3.2 V	280 A	-55 °C	150 °C	Surface Mount	400 VA	TO-268HV (IXBT)	80 A	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	15 V	2 Ohm	1250 V	32 A	50 ns	160 ns
