2823588 Series

Catalog

CIRCULAR METRIC CONNECTORS M12 D-90 DEGREE-F-4 TE CAT 5

Part	Termination	Connector Type	Shell Material	Orientation	Primary Material	Contact Material	Shell Finish	Current Rating	Features	Shielding	Voltage Rating	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Number of Positions	Color	Shell Size - Insert	Insert Material	Contact Finish - Mating	Material Flammability Rating	Ingress Protection Description	Ingress Protection IP Rating

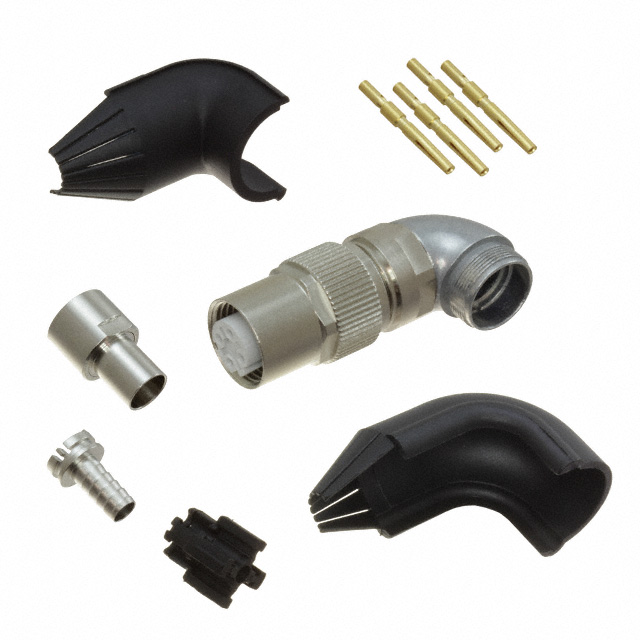

TE Connectivity AMP Connectors 1-2823588-4	Crimp	Female Sockets Receptacle	Copper	D	Metal	Copper Alloy	Nickel	4 A	Backshell Rotatable	Shielded	50 V	Free Hanging (In-Line) Right Angle	-40 °C	70 °C	Threaded	4	Silver	M12-4	Thermoplastic	Gold	UL94 V-0	Dust Tight Waterproof	IP67
TE Connectivity AMP Connectors 1-2823588-2	Crimp	Female Sockets Receptacle	Copper	D	Metal	Copper Alloy	Nickel	4 A	Backshell Rotatable	Shielded	50 V	Free Hanging (In-Line) Right Angle	-40 °C	70 °C	Threaded	4	Silver	M12-4	Thermoplastic	Gold	UL94 V-0	Dust Tight Waterproof	IP67
TE Connectivity AMP Connectors 1-2823588-1	Crimp	Male Pins Plug	Copper	D	Metal	Copper Alloy	Nickel	4 A	Backshell Rotatable	Shielded	50 V	Free Hanging (In-Line) Right Angle	-40 °C	70 °C	Threaded	4	Silver	M12-4	Thermoplastic	Gold	UL94 V-0	Dust Tight Waterproof	IP67
