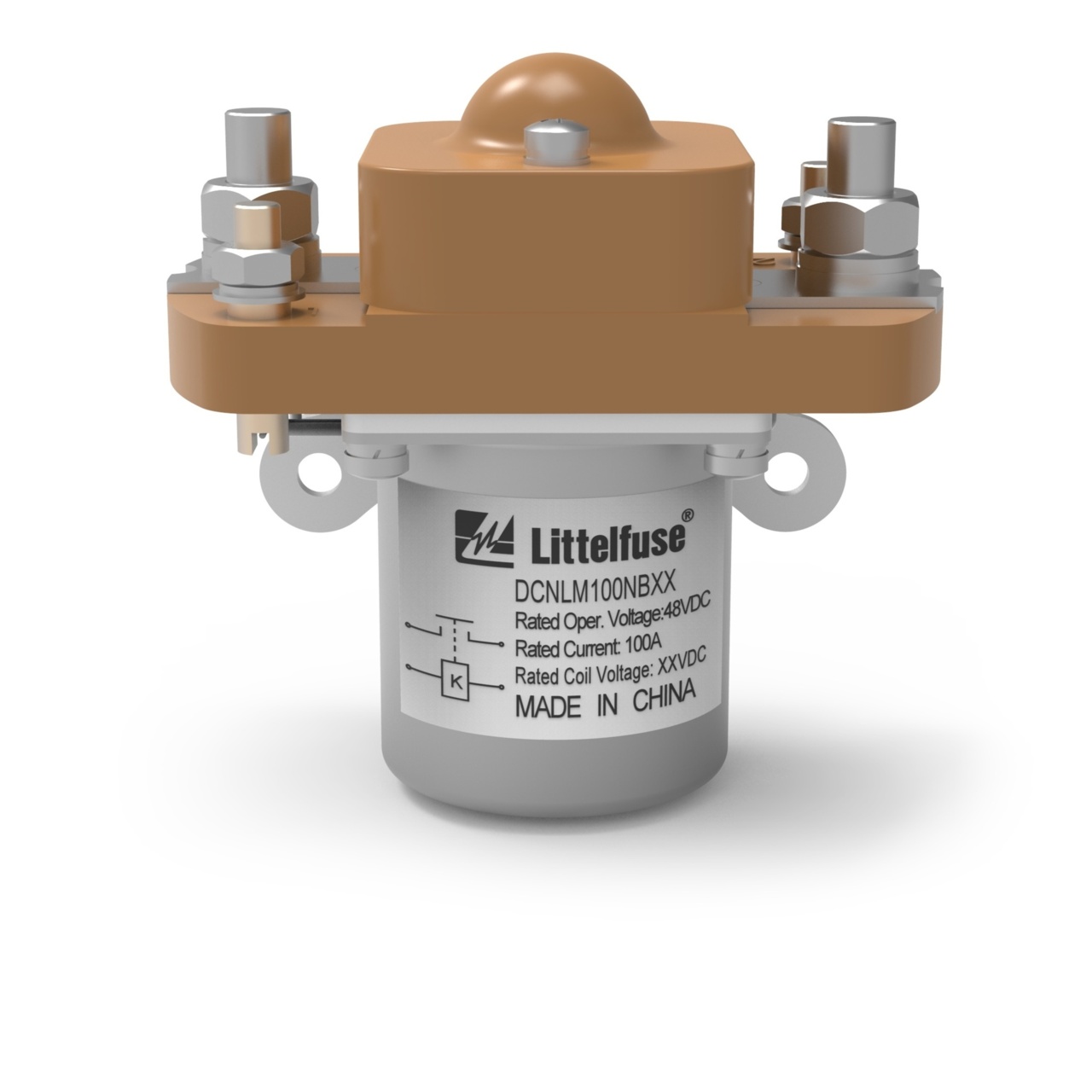

DCNLM100NB12 Series

DCNLM 100A 48V NP 12Vcoil

Catalog

DCNLM 100A 48V NP 12Vcoil

Part	Coil Voltage	Form A Count	Contact Form	Contact Rating (Current)	Must Release Voltage	Must Operate Voltage	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Switching Voltage DC (Max)
LITTELFUSE DCNLM100NB12	12 VAC	1	SPST-NO	100 A	1 VDC	8.4 VAC	Stud	-40 °C	70 °C	Chassis Mount	60 VDC

Catalog

DCNLM 100A 48V NP 12Vcoil

Description

The DCNLM Series 60V High-Current DC Contactor Relay features 100A contact switching capability with a 12V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS). This configuration of the DCNLM normally open, high-current DC contactor (DCNLM100NB12) features 60V non-polarized main contacts and a single-coil design.
