ADF4153 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

FRACTIONAL-N FREQUENCY SYNTHESIZER

Part	Frequency - Max	Differential Input	Differential Output	Mounting Type	Input	Package Length	Package Name	Package Width	Grade	Multiplier	Divider	Input Ratio	Output Ratio	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Number of Circuits	Output	PLL	Type	Package / Case
Analog Devices Inc./Maxim Integrated ADF4153WYRUZ-RL7	4 GHz	Yes	No	Surface Mount	CMOS TTL	0.173 in	16-TSSOP	4.4 mm	Automotive	Yes	No	2	1	125 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)

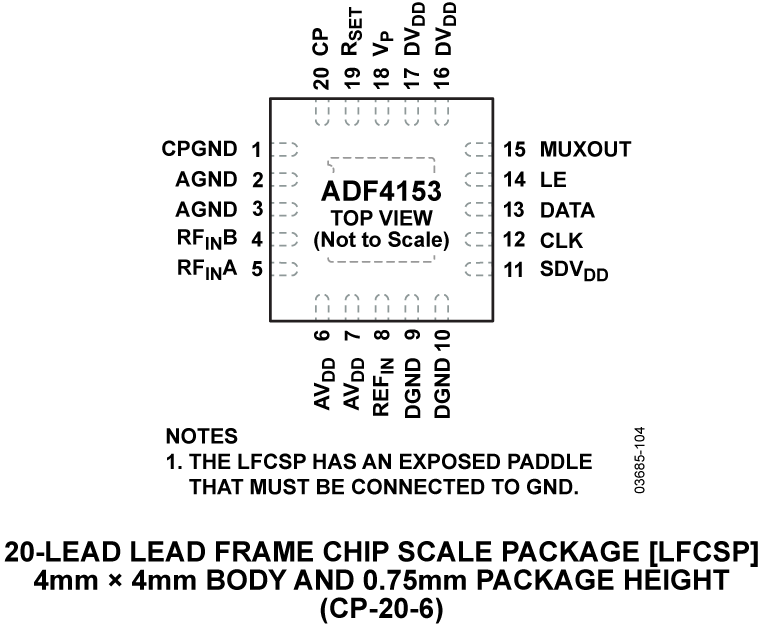

Analog Devices Inc./Maxim Integrated ADF4153ABCPZ-RL7	4 GHz	Yes	No	Surface Mount	CMOS TTL	4 mm	20-LFCSP	4 mm		Yes	No	2	1	85 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)	20-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADF4153BRUZ-RL7	4 GHz	Yes	No	Surface Mount	CMOS TTL	0.173 in	16-TSSOP	4.4 mm		Yes	No	2	1	85 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)
Analog Devices Inc./Maxim Integrated ADF4153YCPZ-RL7	4 GHz	Yes	No	Surface Mount	CMOS TTL	4 mm	20-LFCSP-VQ	3.75 mm		Yes	No	2	1	125 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)	20-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADF4153BCP-REEL7	4 GHz	Yes	No	Surface Mount	CMOS	4 mm	20-LFCSP-VQ	3.75 mm		Yes	No	2	1			3.3 V	2.7 V		Clock	Yes	Fractional N Synthesizer (RF)	20-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADF4153BRUZ-RL	4 GHz	Yes	No	Surface Mount	CMOS TTL	0.173 in	16-TSSOP	4.4 mm		Yes	No	2	1	85 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)
Analog Devices Inc./Maxim Integrated ADF4153YRUZ	4 GHz	Yes	No	Surface Mount	CMOS TTL	0.173 in	16-TSSOP	4.4 mm		Yes	No	2	1	125 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)
Analog Devices Inc./Maxim Integrated ADF4153BCPZ	4 GHz	Yes	No	Surface Mount	CMOS TTL	4 mm	20-LFCSP-VQ	3.75 mm		Yes	No	2	1	85 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)	20-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADF4153YCPZ	4 GHz	Yes	No	Surface Mount	CMOS TTL	4 mm	20-LFCSP-VQ	3.75 mm		Yes	No	2	1	125 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)	20-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADF4153BRUZ	4 GHz	Yes	No	Surface Mount	CMOS TTL	0.173 in	16-TSSOP	4.4 mm		Yes	No	2	1	85 °C	-40 °C	3.3 V	2.7 V	1	Clock	Yes	Fractional N Synthesizer (RF)
