AD9135 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

DUAL, 11-BIT, 2.8 GSPS, TXDAC+®DIGITAL-TO-ANALOG CONVERTER

Part	Package Width	Package Name	Package Length	Reference Type	Settling Time (Typical)	Number of Bits	Package / Case	Number of D/A Converters	Differential Output	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Output Type	Operating Temperature (Min)	Operating Temperature (Max)	INL (LSB) Tolerance	DNL (LSB) Tolerance	Architecture	Mounting Type	Data Interface	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Supplied Contents	Settling Time	Sampling Rate (Per Second)	Utilized IC / Part	Contents	Number of DAC's	DAC Type
Analog Devices Inc./Maxim Integrated AD9135BCPZRL	12 mm	88-LFCSP-VQ	12 mm	Internal	20 ns	11 bits	88-VFQFN Exposed Pad CSP	2 count	Yes	3.13 V	3.47 V	Current - Unbuffered	-40 °C	85 °C	0.35 LSB	0.175 LSB	Current Source	Surface Mount	JESD204B	1.14 V	1.26 V
Analog Devices Inc./Maxim Integrated AD9135BCPZ	12 mm	88-LFCSP-VQ	12 mm	Internal	20 ns	11 bits	88-VFQFN Exposed Pad CSP	2 count	Yes	3.13 V	3.47 V	Current - Unbuffered	-40 °C	85 °C	0.35 LSB	0.175 LSB	Current Source	Surface Mount	JESD204B	1.14 V	1.26 V
Analog Devices Inc./Maxim Integrated AD9135BCPAZ	11.75 mm	88-LFCSP-VQ	12 mm	Internal	20 ns	11 bits	88-VFQFN Exposed Pad CSP	2 count	Yes	3.13 V	3.47 V	Current - Unbuffered	-40 °C	85 °C	0.35 LSB	0.175 LSB	Current Source	Surface Mount	JESD204B	1.14 V	1.26 V

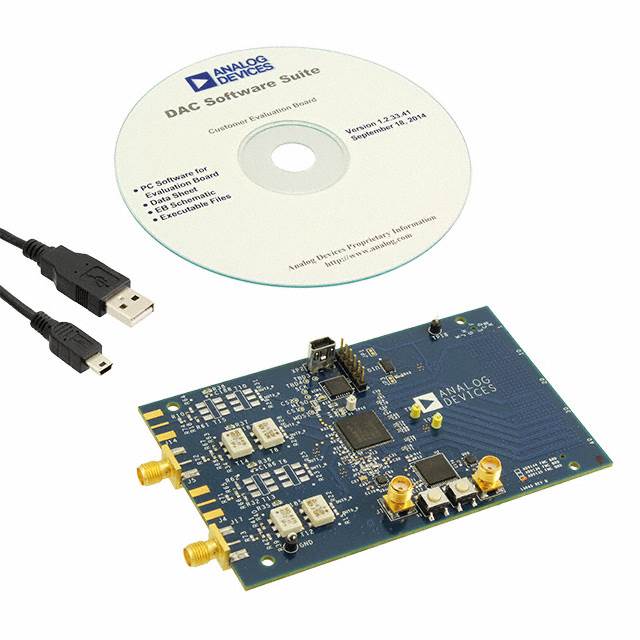

Analog Devices Inc./Maxim Integrated AD9135-FMC-EBZ						11 bits													JESD204B Serial			Board(s)	20 ns	2.8 GHz	AD9135	Board	2	Current
Analog Devices Inc./Maxim Integrated AD9135BCPAZRL	11.75 mm	88-LFCSP-VQ	12 mm	Internal	20 ns	11 bits	88-VFQFN Exposed Pad CSP	2 count	Yes	3.13 V	3.47 V	Current - Unbuffered	-40 °C	85 °C	0.35 LSB	0.175 LSB	Current Source	Surface Mount	JESD204B	1.14 V	1.26 V
