380635 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

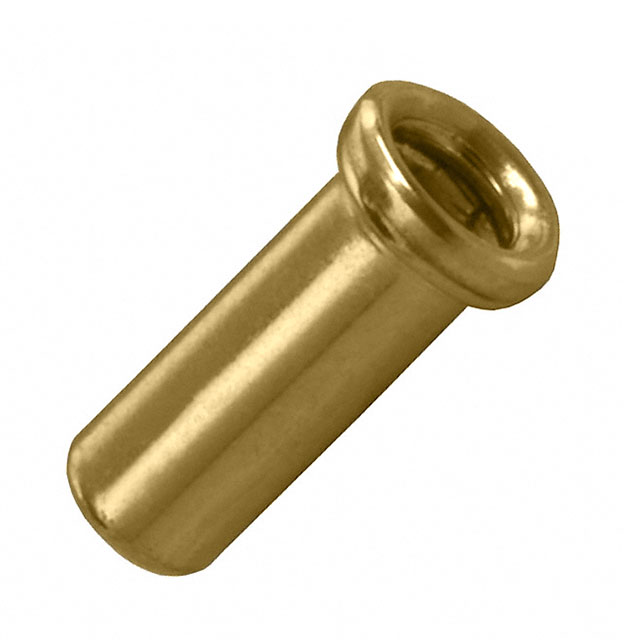

CONN PIN RCPT .018-.040 SOLDER
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Insertion Force (Minimum) | Insertion Force (Maximum) | Board Thickness | Length - Overall | Tail Type | Contact Finish | Termination | Mounting Hole Diameter (Max) | Mounting Hole Diameter (Min) | Accepts Pin Diameter (Min) | Accepts Pin Diameter (Max) | Flange Diameter | Contact Finish Thickness | Contact Material | Pin Hole Diameter | Socket Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 °C | 126 °C | 0.12 N | 0.34 N | 0.156 in | 0.236 in | No Tail | Gold | Solder | 0.089 in | 0.086 in | 0.018 in | 0.04 in | 0.125 in | 30 µin | Beryllium Copper | 0.048 in | 0.145 in |
