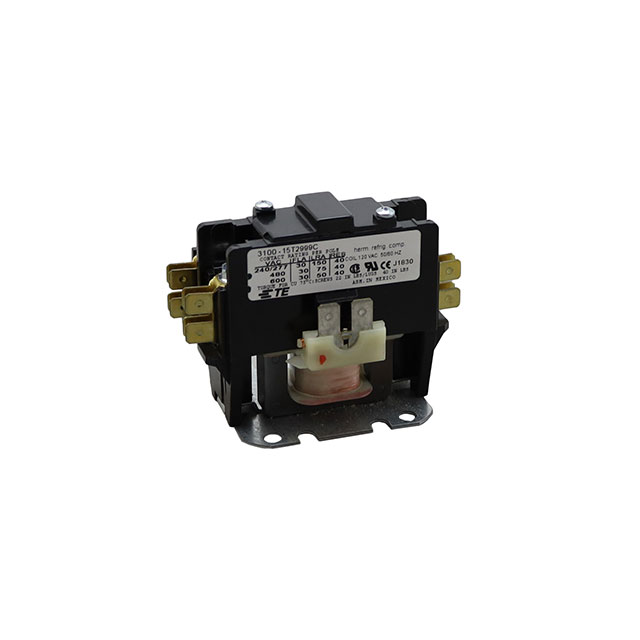

3100-15 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY CONTACTOR
| Part | Coil Current | Coil Resistance | Coil Power | Contact Material | Features | Operating Temperature (Min) | Operating Temperature (Max) | Must Operate Voltage | Switching Voltage AC (Max) | Quick Connect Size (0.250") | Termination Style | Contact Form | Mounting Type | Coil Voltage | Must Release Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.45 A | 16.5 Ohms | 34.8 W | Silver Cadmium Oxide (AgCdO) | Class B Insulation | -40 °C | 65 °C | 18 VDC | 600 VAC | 0.25 in | Quick Connect Screw Terminal | 1 DM Form SPST-NO X | Chassis Mount | 24 VDC | 6 VDC | 30 A |
TE Connectivity AMP Connectors | 1.85 kOhms | 5.3 W | Silver Cadmium Oxide (AgCdO) | Class B Insulation | -40 °C | 65 °C | 177 VAC | 600 VAC | 0.25 in | Quick Connect Screw Terminal | 1 DM Form SPST-NO X | Chassis Mount | 240 V | 40 VDC | 40 A | |
TE Connectivity AMP Connectors | 130 mA | 1.85 kOhms | 31.1 W | Silver Cadmium Oxide (AgCdO) | Class B Insulation | -40 °C | 65 °C | 177 VAC | 600 VAC | 0.25 in | Quick Connect Screw Terminal | 1 DM Form SPST-NO X | Chassis Mount | 240 V | 40 VDC | 30 A |
 TE Connectivity AMP Connectors | 420 Ohms | 5.3 W | Silver Cadmium Oxide (AgCdO) | Class B Insulation | -40 °C | 65 °C | 88 V | 600 VAC | 0.25 in | Quick Connect Screw Terminal | 1 DM Form SPST-NO X | Chassis Mount | 120 V | 20 VAC | 30 A | |
 TE Connectivity AMP Connectors | 1.85 kOhms | 5.3 W | Silver Cadmium Oxide (AgCdO) | Class B Insulation | -40 °C | 65 °C | 177 VAC | 600 VAC | 0.25 in | Quick Connect Screw Terminal | 1 DM Form SPST-NO X | Chassis Mount | 240 V | 40 VDC | 25 A |
